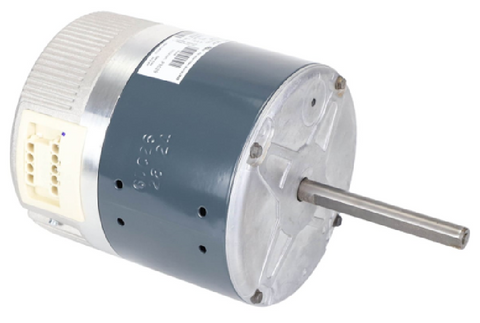

Trane MOT20545 Motor

The Trane MOT20545 EON Variable Speed Motor is a 1/2 HP HVAC blower motor designed for compatible Trane furnace and air-handling applications. The MOT20545 is identified as an EON variable-speed motor with 7-coefficient programming. Electrical specifications include 120/208-240 VAC, single-phase, 50/60 Hz operation with a rated speed of approximately 1050 RPM.

This Trane blower motor is application-specific, so contractors should not select a replacement based on horsepower and voltage alone. Verify the complete equipment model and serial number, original motor part number, voltage, programming, wiring harness, mounting configuration, rotation, and blower assembly before ordering. MOT20545 is used in compatible Trane furnace blower applications where the correct motor programming is important for proper airflow and system operation.

Key Benefits

• Manufacturer: Trane
• Part Number: MOT20545
• Product Type: EON Variable Speed HVAC Blower Motor
• Programming: 7 Coefficient
• Horsepower: 1/2 HP
• Voltage: 120/208-240 VAC
• Phase: Single Phase
• Frequency: 50/60 Hz
• Rated Speed: Approximately 1050 RPM
• Designed for compatible Trane furnace blower applications
• Application-specific programming for proper system airflow

Common Questions

What is the Trane MOT20545?
The MOT20545 is a 1/2 HP EON variable-speed blower motor with 7-coefficient programming used in compatible Trane HVAC equipment.

What voltage does the MOT20545 use?
Published specifications identify the motor for 120/208-240 VAC, single-phase, 50/60 Hz operation.

What is the rated speed of the Trane MOT20545?
The published motor specification lists approximately 1050 RPM.

Can I replace MOT20545 with any 1/2 HP motor?
No. The motor's programming and equipment application must be considered along with horsepower and voltage. The electrical requirements, programming, wiring, mounting, and equipment application must match.

How do I confirm compatibility?
Verify the complete Trane equipment model and serial number against the applicable factory parts breakdown before ordering. This is particularly important for programmed and variable-speed motors.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

MOT20545 is the cross for MOT16956
