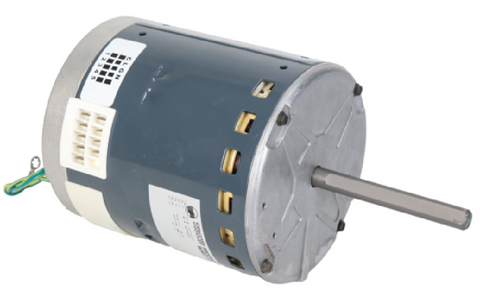

Trane MOT21481 Motor

The Trane MOT21481 Programmed Motor is an OEM constant-torque ECM blower motor designed for compatible Trane HVAC equipment. This motor is specified as 3/4 HP, 208-230V, single-phase, 60 Hz, with a programmed operating range of approximately 1050-600 RPM and CCW rotation. The MOT21481 is also the current replacement for Trane MOT16685.

This Trane ECM blower motor includes the programmed control configuration required for specific Trane air-moving applications. Because ECM motors depend on factory programming as well as electrical and mechanical specifications, do not substitute a motor based only on horsepower, voltage, or RPM.

Before ordering, verify the complete equipment model and serial number, original motor number, voltage, phase, rotation, mounting arrangement, shaft configuration, and control requirements.

Key Benefits

• Manufacturer: Trane
• Part Number: MOT21481
• Motor Type: Programmed Constant-Torque ECM Blower Motor
• Horsepower: 3/4 HP
• Voltage: 208-230V
• Phase: Single Phase
• Frequency: 60 Hz
• Speed Range: Approximately 1050-600 RPM
• Rotation: CCW
• Replaces: Trane MOT16685
• Designed for compatible Trane HVAC blower applications

Common Questions

Does Trane MOT21481 replace MOT16685?
Yes. The MOT21481 is the current replacement for MOT16685.

Is MOT21481 a programmed ECM motor?
Yes. MOT21481 is a programmed constant-torque ECM motor, so the factory programming is an important part of equipment compatibility.

What are the electrical specifications?
The MOT21481 is specified as a 3/4 HP, 208-230V, single-phase, 60 Hz motor.

What is the motor speed?
The programmed operating range is approximately 1050-600 RPM.

Can I replace it with another 3/4 HP 230V motor?
Not based on horsepower and voltage alone. Verify the programmed ECM configuration, RPM range, rotation, mounting, shaft, electrical connections, and exact equipment compatibility before substituting another motor.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
