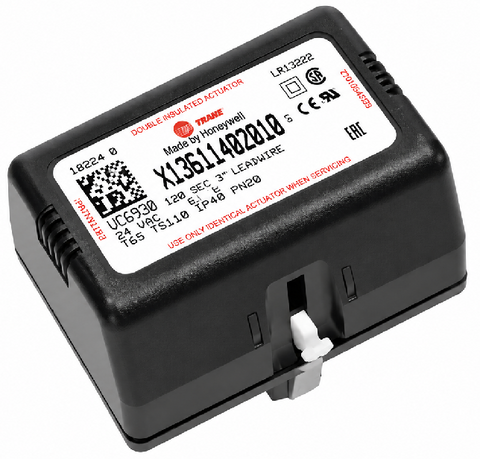

Trane VC6930ZZ32 Modulating Actuator

The Trane VC6930ZZ32 24V Modulating Actuator is a low-voltage valve actuator used with compatible VC Series two-way and three-way hydronic control valves. Designed for HVAC heating and cooling applications, this 24V valve actuator positions the valve according to system control demand.

The actuator operates on 24 VAC, 50/60 Hz and is suitable for compatible fan coils, hydronic heating circuits, cooling systems, radiators, and convectors. The VC Series modulating actuator uses a compact, double-insulated design and allows actuator-head service without draining the hydronic system.

Trane parts references identify VC6930ZZ32 as a 24V, 2-way/3-way modulating actuator with an 8-inch lead. Before replacing an existing HVAC valve actuator, verify the valve series, control signal, wiring configuration, valve action, and original part number.

Key Benefits

• Trane VC6930ZZ32 actuator
• 24 VAC, 50/60 Hz
• Compatible with specified 2-way and 3-way VC Series valves
• Modulating valve-control operation
• 8-inch lead
• Double-insulated actuator construction
• Actuator head can be serviced without draining the hydronic system
• Suitable for compatible heating, cooling, and fan-coil applications

Common Questions

Is the Trane VC6930ZZ32 compatible with both 2-way and 3-way valves?

Yes, it is designed for compatible VC Series 2-way and 3-way valve bodies. Verify the complete valve model, control signal, wiring, and required valve action before installation.

What voltage does the VC6930ZZ32 use?

The actuator operates on 24 VAC at 50/60 Hz. Verify the existing control transformer and wiring configuration before installation.

Can the actuator be replaced without draining the system?

On compatible VC Series valve assemblies, the actuator head can be removed and replaced without draining the hydronic piping. Isolate electrical power and verify the valve application before service.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

VC6930ZZ32 is the cross for X13611402010
