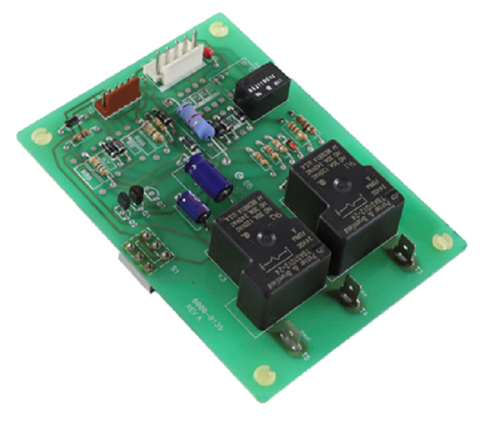

Utica-Dunkirk 240001770 Control Board

The Utica-Dunkirk 240001770 Control Board is a critical OEM heating and cooling relay board designed to manage the sequence of operations in high-efficiency HVAC systems. This control board relay Ht/Cl functions as the primary switching logic for the blower motor and system peripherals, ensuring precise timing between the call for heat or cool and equipment activation. As a direct Utica-Dunkirk 240001770 replacement, it maintains the integrity of the original system design, eliminating the performance issues often associated with generic universal boards. The HVAC relay control board features a heavy-duty relay assembly capable of handling inductive loads, effectively preventing contact pitting and premature failure during extreme cycling. Field technicians will find the 240001770 furnace part facilitates a drop-in installation, maintaining all factory-specified delays and safety interlocks required for proper heat exchanger cooling and energy-efficient blower operation. Whether you are troubleshooting an unresponsive fan or a hard-lockout condition, this genuine technical HVAC part provides the exact electrical specifications required for Dunkirk and Utica boiler and furnace platforms.

• Direct OEM Integration: Built specifically to the electrical profiles of Utica and Dunkirk units, ensuring seamless terminal-to-terminal compatibility.
• Dual-Mode Functionality: Manages both heating and cooling relay signals from the thermostat to synchronize multi-stage or single-stage system operations.
• Enhanced Circuit Protection: Engineered with robust trace paths to withstand standard voltage fluctuations and operational surges common in residential and commercial environments.
• Optimized Blower Timing: Pre-set logic manages post-purge and pre-purge cycles to maximize heat transfer and protect the heat exchanger from thermal stress.

Common Questions

How do I verify if the 240001770 relay is defective?
Verify 24VAC input between the R and C terminals. If the thermostat is calling for fan (G) or heat (W) and you have power at the board but the corresponding relay for the blower or inducer fails to close, the internal relay logic has likely failed.

Can this board be used in systems with an external fan center?
This board typically manages the relay functions internally. If your specific Utica or Dunkirk model originally utilized the 240001770, it is designed to replace that specific circuitry without needing additional external relay modifications.

What causes these boards to fail prematurely?
The most common field failures are caused by loose wiring harness connections creating high resistance, moisture exposure in non-conditioned spaces, or carbon buildup on relay contacts following years of heavy cycling.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
