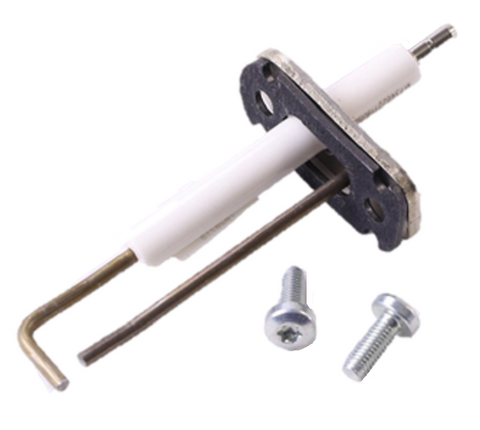

Viessmann 7828718 Electrode Block

The Viessmann 7828718 Electrode Block is a critical genuine OEM ignition and ionization electrode assembly specifically engineered for Viessmann WB1B and B1xA series boilers. As a dual-function component, it integrates both the boiler ignition electrode for consistent burner start-up and the ionization flame sensor for real-time flame rectifying and monitoring. Technicians servicing Vitodens 100-W units will find this block essential for resolving common Viessmann F4 fault codes or intermittent burner lockouts caused by carbon buildup or porcelain degradation. Utilizing authentic Viessmann replacement parts ensures that the combustion blower and gas valve synchronize correctly with the control board signals. This assembly is built to withstand high thermal cycling, maintaining the precise gap required for high-voltage arcing while ensuring the ionization current remains within the specific microamp range required for safe, continuous operation.

Technical Benefits for Contractors:

• Optimized Ignition Sequence: Eliminates delayed ignition and hard starts by providing a clean, consistent spark across the burner surface.
• Precise Flame Sensing: The ionization rod prevents nuisance shutdowns by accurately communicating flame presence to the boiler control unit.
• Direct Fit Compatibility: Specifically designed for WB1B 26/35 and B1xA wall-mounted condensing boilers, ensuring no modifications are needed during installation.
• System Safety: As a genuine Viessmann 7828718 component, it meets the exact factory tolerances for gas-to-air ratio monitoring.

Common Technical Questions:

Which boiler models use the 7828718 electrode block?
This block is compatible with the Vitodens 100-W WB1B and B1xA/B1HA/B1KA series. Always verify the serial number on the boiler cabinet to ensure exact fitment for Viessmann burner components.

Does this assembly include the gasket?
Standard field practice identifies this as the electrode block only; however, it is highly recommended to inspect and replace the burner door gasket or electrode manifold seal during service to prevent flue gas leakage.

Will this fix a Viessmann F4 error code?
Yes, an F4 fault typically indicates no flame signal is detected. Replacing a fouled or cracked ionization electrode with this OEM part is the primary solution for restoring the sensing circuit.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
