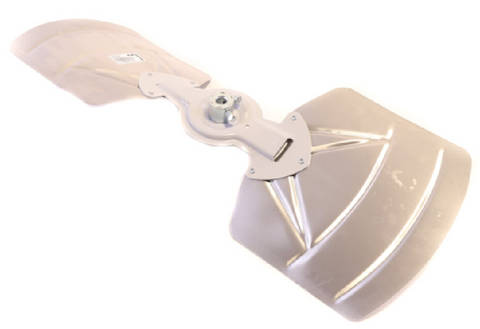

York S1-026-25515-000 Fan Blade

The York S1-026-25515-000 Condenser Fan Blade is an OEM replacement propeller designed to restore proper condenser airflow in compatible York HVAC equipment. This fan blade features a 24-inch diameter, 24-degree pitch, 2-blade configuration, clockwise (CW) rotation, and a 1/2-inch bore on the intake side. Matching the correct diameter, pitch, rotation, bore size, and hub orientation is essential for maintaining proper condenser performance and preventing excessive vibration, increased head pressure, and unnecessary strain on the fan motor.

Designed for use with compatible York equipment, including model BQ036C00N2DAA1, this condenser fan blade should always be verified against the original part number and equipment specifications before installation. Proper installation includes confirming blade rotation, shaft fit, fan guard clearance, and secure mounting to ensure reliable airflow and efficient system operation.

Key Benefits

• OEM York replacement fan blade
• 24-inch diameter with 24-degree pitch
• Two-blade condenser fan design
• Clockwise (CW) rotation
• 1/2-inch bore on the intake side
• Restores proper condenser airflow when correctly matched
• Designed for compatible York HVAC equipment

Common Questions

What equipment is compatible with the York S1-026-25515-000?
This fan blade is designed for compatible York HVAC equipment and is listed for use with model BQ036C00N2DAA1. Always verify your equipment model and original part number before ordering.

What is the rotation direction of this fan blade?
The S1-026-25515-000 features clockwise (CW) rotation when viewed from the specified intake side. Confirm the rotation before installation.

What specifications should I verify before replacing the fan blade?
Verify the 24-inch diameter, 24-degree pitch, 2-blade configuration, clockwise rotation, 1/2-inch bore, hub orientation, motor shaft size, and fan guard clearance to ensure proper fit and performance.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
