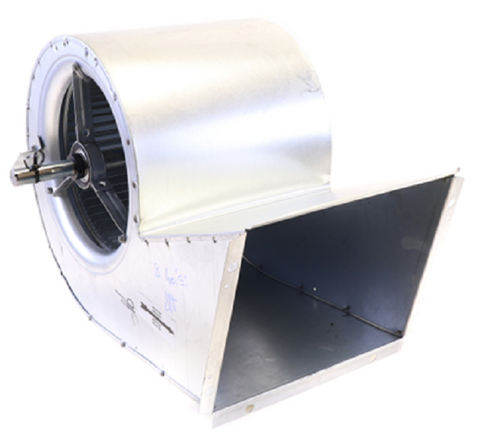

York S1-026-47759-000 Blower Assembly

The York S1-026-47759-000 Blower Assembly is a heavy-duty, belt-drive replacement engineered for high-capacity air handling in 25 to 50-ton industrial and commercial HVAC systems. This OEM York blower assembly includes the blower housing, centrifugal blower wheel, shaft, and industrial-grade bearings, providing a complete solution for field repairs and system overhauls. Designed for compatibility with York and Johnson Controls air handlers and packaged units, this assembly facilitates high-velocity HVAC airflow across cooling and heating coils to maintain static pressure and thermal distribution.

Built for the mechanical stress of continuous duty, the S1-026-47759-000 features a service-friendly design that simplifies the alignment of external motors and drive pulleys. Its precision-balanced wheel minimizes mechanical vibration, extending the life of the motor and drive belts while ensuring uniform air circulation. This assembly is a standard specification for contractors maintaining large-scale climate control equipment where reliability in air movement is non-negotiable.

Key Benefits:

• Industrial Durability: Constructed with heavy-gauge materials to withstand the rigorous demands of commercial air handlers and large-tonnage packaged units.
• Precision Balance: Features a factory-balanced blower wheel and shaft to reduce vibration, protecting the bearing assembly and drive motor from premature wear.
• Exact OEM Fit: Designed to original manufacturer specifications, ensuring seamless integration with existing belt-driven HVAC pulley systems and mounting brackets.
• Thermal Efficiency: Optimized housing geometry maximizes the centrifugal force required to move large volumes of conditioned air through complex ductwork.

Common Questions:

Is the motor included with this assembly?
No, this is a belt-drive blower assembly that includes the housing, wheel, shaft, and bearings. The HVAC blower motor and drive pulleys must be purchased separately or transferred from the existing unit.

Which systems are compatible with the S1-026-47759-000?
This HVAC replacement part is primarily used in York LA300, LB360, LB480, and LB600 series split-system air-cooled evaporators and similar high-capacity commercial platforms.

Does this unit require special shipping?
Yes, due to the 34-pound weight and physical dimensions (27x25.5x22 inches), this assembly is typically shipped via LTL freight to ensure the integrity of the housing and shaft alignment during transit.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
