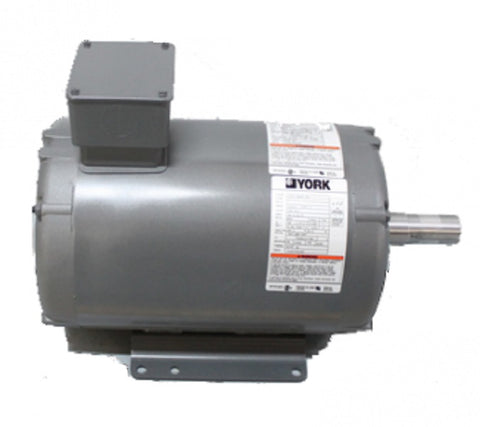

York 024-25247-001 Motor

The York 024-25247-001 Motor is a heavy-duty industrial 3-Phase electric motor designed for high-demand HVACR applications. Operating on a 480V 3PH power supply, this 3 HP unit is engineered for precision air movement, commonly utilized in commercial chillers and large-scale air handling systems. This model features a versatile dual-speed output of 710/850 RPM, allowing for efficient performance scaling based on system load and static pressure requirements. With a robust 215TZ frame and TENV (Totally Enclosed Non-Ventilated) enclosure rating, it is built to withstand rigorous operating environments while maintaining long-term reliability. Technicians should note the NEMA Design B construction and Class F insulation, which ensure high thermal stability during continuous operation. This specific York replacement motor is a critical component for maintaining the airflow integrity of OEM York equipment, carrying a weight of 171 lbs and demanding precise electrical alignment during field installation to ensure optimal torque and efficiency.

• Dual-Speed Versatility: The 710/850 RPM range provides flexibility for variable airflow requirements in complex HVAC systems.
• Industrial Durability: Featuring a 215TZ frame and TENV enclosure, this motor is protected against environmental contaminants.
• High Thermal Rating: Integrated Class F insulation allows the unit to operate reliably at elevated ambient temperatures without degradation.
• Direct OEM Integration: Specifically engineered as a York 3 HP motor replacement to ensure physical and electrical compatibility with existing mounting brackets and controls.

Is this motor compatible with VFD controllers?
While designed for 480V 3-phase systems, always verify that the NEMA Design B and insulation class meet the specific carrier frequency requirements of your variable frequency drive to prevent winding stress.

What are the wiring requirements for the dual-speed configuration?
Contractors must reference the specialized lead markings on the nameplate to ensure correct phasing for both the low-speed 710 RPM and high-speed 850 RPM operations.

Does this unit require specialized rigging for installation?
At 171 lbs, a lift gate or professional hoist is highly recommended to safely secure the 024-25247-001 motor into the air handler or chiller housing.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
