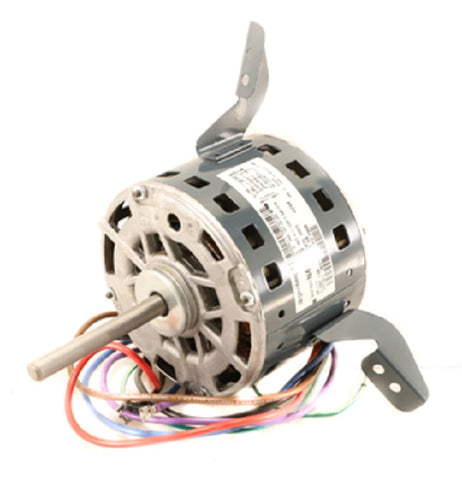

York S1-024-24772-700 Motor

The York S1-024-24772-700 Motor is a high-performance 1/3 HP PSC motor engineered for precise performance in OEM HVAC systems. Operating at 208-230Vac and 1075 RPM, this direct drive blower motor features a 48 Nema frame size and 3-speed versatility to accommodate varying airflow requirements. Its Open Drip Proof (ODP) housing ensures optimal heat dissipation during continuous operation, while sleeve bearings provide quiet performance in residential and light commercial air handlers. This replacement blower motor utilizes a CCW lead end rotation and a permanent split capacitor design to maintain electrical efficiency and reliable startup torque. Technicians should verify the S1-024-24772-700 compatibility by matching voltage and amperage draw to ensure seamless integration with the existing fan blower assembly and control board configurations.

• 3-Speed Versatility: Multiple speed taps allow for precise airflow tuning based on system static pressure.
• Sleeve Bearing Operation: Designed for low-vibration and quiet operation in indoor air handler units.
• ODP Enclosure: Facilitates maximum cooling for the internal windings to extend component life under high loads.
• OEM Fitment: Standard 48 frame diameter ensures direct mechanical mounting without the need for bracket modification.

Common Questions

Does this motor require a specific run capacitor?
Yes, this PSC blower motor must be paired with the correct microfarad (MFD) rated capacitor as specified on the motor nameplate to prevent overheating and ensure proper torque.

Is the S1-024-24772-700 rotation reversible?
This specific model is configured for CCW lead end rotation; always verify the rotation of the existing squirrel cage before installation.

Can I use this motor in a 115V application?
No, this unit is rated specifically for 208-230V. Applying lower voltage will result in motor failure and potential damage to the system's electrical components.
