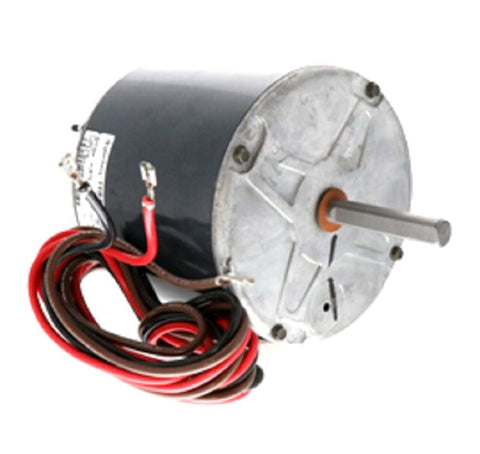

York S1-024-40907-000 Motor

The York S1-024-40907-000 Condenser Fan Motor is a high-reliability, 230V single-phase condenser motor designed for demanding residential and light commercial HVAC applications. Operating at 1100 RPM with a 1/3 HP power rating, this permanent split capacitor (PSC) motor delivers the consistent torque necessary for effective heat dissipation across the outdoor coil. Engineered with a clockwise (CW) rotation (lead end), it serves as the exact internal component for various York, Luxaire, and Coleman heat pump and condensing units. This unit features a robust 48-frame design and is thermally protected to prevent winding failure during high-ambient operation. When executing a York motor replacement, verify the capacitor requirements, as a weakened run capacitor is the primary cause of intermittent cycling or "humming" stalls on these HVAC fan motors. The S1-024-40907-000 provides a critical drop-in replacement for obsolete part numbers, including S1-024-25820-700, S1-024-32029-000, and S1-024-36002-000, though technicians should note that lead connections may vary slightly on legacy cross-references.

• OEM Compatibility: Precision-engineered as a direct OEM replacement motor for York and Johnson Controls equipment to ensure factory-standard airflow.
• High-Efficiency Performance: The 1/3 HP 1100 RPM output maintains the necessary static pressure for optimal refrigerant subcooling.
• Thermal Protection: Features internal automatic reset thermal overload protection to guard against insulation breakdown during extreme summer loads.
• Versatile Cross-Reference: Consolidates multiple older part numbers into a single, reliable 230v condenser motor SKU.

Is the run capacitor included with this motor?
Standard replacement motors typically require a new run capacitor (check the nameplate for MFD rating) to ensure proper starting torque and motor longevity.

Can I use this motor if my original was 1075 RPM?
Yes, an 1100 RPM rating is a compatible professional substitute for 1075 RPM applications, providing equivalent or slightly improved CFM without over-amping the circuit.

What if my existing wiring harness doesn't match the new leads?
While this is a direct replacement, lead termination may vary. Veteran techs recommend verifying the wiring diagram on the motor housing against the unit's schematics before applying power.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
