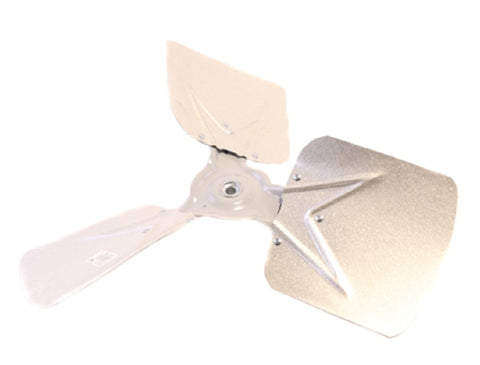

York S1-026-32173-000 Fan Blade

This York S1-026-32173-000 Fan Blade is a critical OEM replacement part engineered for high-efficiency York, Coleman, and Luxaire residential condensing units. Built with a 22-inch diameter and a precise 34-degree pitch, this three-blade assembly is designed to maintain the specific static pressure and cubic feet per minute (CFM) requirements of your outdoor section. The assembly features a 1/2-inch bore positioned on the intake side, ensuring a secure fit on standard 48-frame condenser fan motors. Designed for clockwise (CW) rotation (determined by viewing from the discharge side), this blade utilizes high-strength aluminum construction and a reinforced galvanized steel spider to withstand the rigors of continuous outdoor cycling. For veteran technicians, this direct replacement fan blade ensures you maintain factory-spec airflow, preventing head pressure spikes and protecting the compressor from premature wear during high-ambient operations.

• Optimized Airflow: The 34-degree pitch is precision-calibrated to maximize heat rejection across the condenser coil.
• Durable Construction: Heavy-duty aluminum blades with a galvanized steel hub provide superior corrosion resistance in coastal or high-humidity environments.
• Vibration Reduction: Factory-balanced design minimizes mechanical stress on the motor bearings and reduces operational noise.
• Universal Precision: Direct 1/2" bore fitment eliminates the need for shaft adapters, ensuring a true center and efficient energy transfer.

How do I confirm the rotation direction?
Rotation for this HVAC condenser fan blade is clockwise (CW) when facing the discharge side. Always verify against the original part’s stamped rotation arrow or the motor’s lead wiring before installation.

Is the mounting hub included with this assembly?
Yes, this is a fixed-hub assembly with a 1/2-inch bore, meaning it is ready to slide onto the motor shaft and secure via the provided set screw.

Will this blade fit other 22-inch condenser units?
While the 22" diameter is common, you must match the 34-degree pitch and CW rotation exactly. Using an incorrect pitch can overload the fan motor or fail to pull enough air to cool the refrigerant, leading to system trips.
