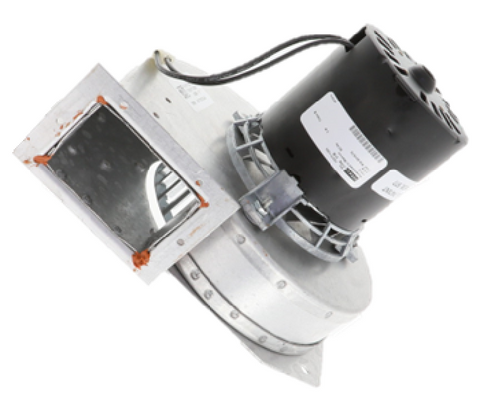

York S1-026-32588-047 Draft Inducer Assembly

Field-proven and built for continuous duty, the York S1-026-32588-047 Draft Inducer Assembly is a critical OEM furnace replacement part designed to ensure proper combustion cycles in high-performance HVAC systems. This ventor motor assembly operates at 115V and 3000 RPM, delivering the precise static pressure required to purge the heat exchanger and activate the pressure switch. As a genuine York furnace inducer blower, it serves as a direct drop-in for problematic units exhibiting bearing seizure or winding failure. By maintaining a consistent flue exhaust flow, this assembly prevents carbon monoxide buildup and maintains the peak thermal efficiency of the appliance. Its robust construction features precision-balanced blades to minimize mechanical vibration and housing fatigue. For technicians, the pre-installed power plug and standard footprint streamline the installation process, reducing time on the job site while restoring reliable combustion air intake and exhaust functionality to residential or commercial gas-fired furnaces.

• Optimized Combustion Safety: Effectively purges toxic combustion gases and ensures the flue system maintains proper negative pressure for safe ignition.
• Technical Precision: Rated at 115V and 3000 RPM with a 1/30 HP motor to meet strict factory specifications for airflow and static pressure.
• Vibration Reduction: Engineered with precision-balanced internal components to eliminate common rattling or grinding noises associated with worn induction assemblies.
• Durable Infrastructure: Designed for high-heat environments to prevent premature failure of the motor windings and gaskets during peak heating seasons.
• Direct OEM Fit: Simplifies the replacement process with exact mounting alignment and integrated electrical connections for York, Coleman, and Luxaire units.

What are the signs that this inducer assembly needs replacement?
Technicians typically look for loud screeching or grinding noises indicating bearing failure, or a "no heat" call where the sequence of operations stalls at the pressure switch because the motor isn't reaching full 3000 RPM.

Is a gasket included with this assembly?
Most OEM-grade inducer assemblies for this 026-32588-047 series are designed to be used with a high-temperature gasket or RTV silicone to ensure an airtight seal against the collector box via the mounting flange.

Will this motor fix a pressure switch lockout?
If the motor is seized or spinning below the required velocity, it will fail to close the pressure switch. Verifying line voltage at the motor leads is the first step before confirming the assembly requires replacement.
