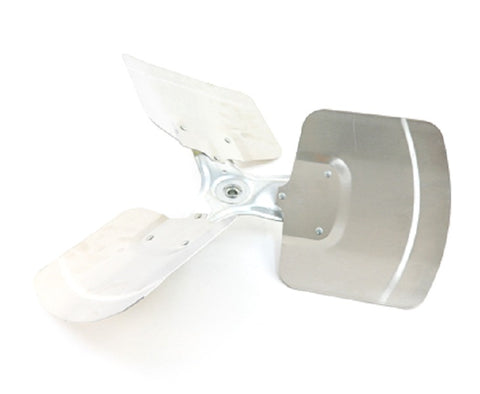

York S1-026-34094-000 Fan Blade

The York S1-026-34094-000 Fan Blade is a critical OEM replacement condenser fan blade designed for high-static efficiency in residential and commercial York, Coleman, and Luxaire units. Featuring a 22-inch diameter and a precise 34-degree pitch, this 3-blade assembly is engineered to maintain optimal head pressure by maximizing cubic feet per minute (CFM) across the coil. The unit is balanced to minimize vibration and bearing wear on the condenser motor, ensuring long-term mechanical stability. It is built for clockwise (CW) rotation with a standard 1/2-inch bore positioned on the intake side, making it a direct-fit solution for technicians performing field service on heat pumps and air conditioning systems.

• Precision Airflow: The 34-degree pitch is optimized for specific York condenser configurations to ensure correct heat dissipation.
• Direct OEM Fit: Eliminates the need for universal hub adjustments, reducing installation time during HVAC preventative maintenance.
• Enhanced Durability: Constructed from heavy-gauge materials to resist blade deformation under high-torque startups.
• System Efficiency: Maintaining the correct condenser fan blade pitch prevents motor overheating and improves overall SEER performance.

What is the correct rotation for the S1-026-34094-000?
This blade is designed for clockwise (CW) rotation when viewing the unit from the discharge side. Always verify the motor lead configuration before securing the hub.

Will this work with a 5/8-inch motor shaft?
No, this blade is specifically machined for a 1/2-inch bore. Forcing a fit or using an adapter can lead to catastrophic imbalance and motor failure.

How do I measure the diameter of a 3-blade fan?
To confirm you have the correct 22-inch fan blade, measure from the center of the hub to the tip of one blade and multiply by two, or measure from one blade tip to the furthest point on the opposing side.
