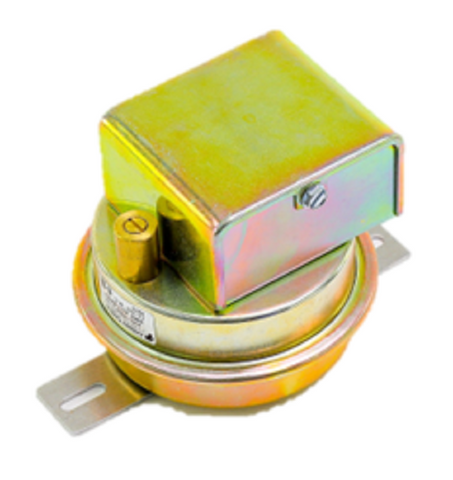

Antunes Controls 8021204007 Pressure Switch

The Antunes Controls 8021204007 is a precision-engineered Air Differential Pressure Switch designed for monitoring thin air flows in commercial HVACR and industrial combustion systems. This SPDT pressure switch features an adjustable set point range from 0.17 to 6.0 inches water column, providing versatile performance for proof-of-airflow and filter monitoring applications. Built with a rugged die-cast aluminum housing and an integrated cover, it ensures long-term reliability in demanding mechanical rooms. The unit utilizes 1/8" NPT female ports for high and low pressure connections, facilitating seamless integration with standard pneumatic tubing and fittings. Technicians value the 8021204007 model for its repeatable trip points and simple field calibration, making it an essential component for maintaining safety interlocks in forced air burners and ventilation sequences.

• Wide Adjustability: The 0.17 to 6" w.c. range allows for precise tuning across various differential pressure requirements.
• Form C Contacts: Reliable SPDT switching allows for flexible wiring configurations for both normally open and normally closed circuits.
• Industrial Build: Includes a protective cover and durable 1/8 NPT threaded ports to prevent leaks and withstand vibration.
• Technical Compatibility: Frequently cross-referenced for antunes 8021204007 specs in commercial boiler and HVAC control loops.

Common HVACR Questions

How do I calibrate the trip point on the Antunes 8021204007?
Remove the cover and use the internal adjustment screw while monitoring the system with a calibrated manometer to ensure the switch trips at your specific pressure set point.

Can this switch be used for both positive and vacuum pressure?
Yes, the air pressure sensing switch can be configured to monitor positive, vacuum, or differential pressure depending on how the high and low ports are piped.

What electrical load can the SPDT contacts handle?
The Antunes Controls 8021204007 is typically rated for pilot duty and general-purpose electrical switching; always verify the current draw of your controller or motor starter against the internal nameplate specifications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
