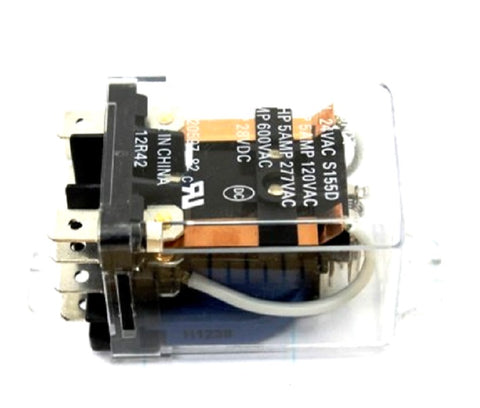

Aaon P91000 Relay

The Aaon P91000 is an industrial-grade DPDT plug-in relay designed for demanding HVACR control circuits. This 24V coil relay features a 5A contact rating, making it a reliable choice for switching auxiliary loads, fan motors, and compressor contactors in Aaon rooftop units and chillers. The Double Pole Double Throw configuration allows for simultaneous control of two separate circuits, providing essential versatility for interlocking safety controls or sequencing multi-stage equipment. Built to withstand the high-cycle demands of commercial systems, this Aaon replacement relay ensures stable electrical switching and minimizes voltage drop across terminals. Its standard 8-pin or blade-style plug-in base compatibility facilitates rapid field replacement, reducing diagnostic downtime for service contractors. When troubleshooting low voltage control circuits, the P901000 provides the electromagnetic precision required to maintain system logic integrity and prevent intermittent faults in commercial HVAC control boards.

• Universal HVAC Compatibility: Engineered specifically for Aaon equipment, ensuring seamless integration with existing 24VAC control transformers.
• High-Cycle Durability: Robust contact material resists pitting and oxidation, extending the service life of the electromechanical relay.
• Standardized Form Factor: The compact plug-in design simplifies installation and testing without requiring extensive rewiring of the control cabinet.
• Relief of Control Board Load: Utilizing this 5 amp relay protects sensitive microprocessor controllers from high-amperage induction spikes.

Common Resident & Contractor Questions

Can I use a standard 24V relay to replace the P91000?
While many relays share a 24V coil, the Aaon P91000 is specified for its exact amperage rating and pin configuration. Always verify the terminal layout and inductive load capacity to ensure the DPDT switching logic matches the original manufacturer's schematic.

What are the signs of a failing HVAC control relay?
Common indicators include audible "chattering" during startup, visible arcing across contacts, or a total failure of the 24V signal to pass through the Normally Open (NO) or Normally Closed (NC) poles, often caused by coil burnout or high resistance at the contact points.

Is this relay suitable for 120V switching?
The P91000 is rated for 5A contacts; however, while it can often handle line voltage switching, it is critical to confirm the specific inductive vs. resistive load requirements of your application to prevent premature failure of the relay contacts.
