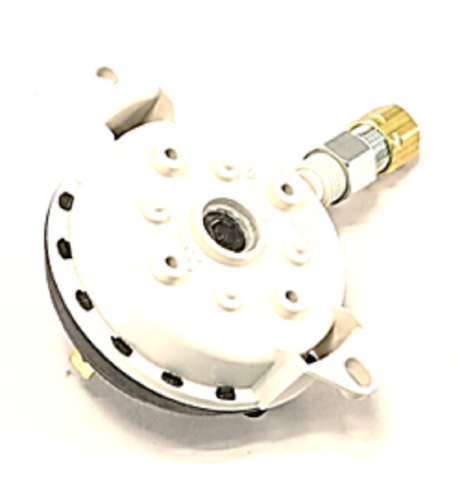

Aaon R77160 Pressure Switch

The Aaon R77160 Pressure Switch is a critical safety and monitoring component engineered specifically for Aaon rooftop units and high-performance HVAC systems. This single pole single throw (SPST) switch is factory-calibrated to a 0.45" WC set point, ensuring precise monitoring of differential air pressure within the cabinet or heat exchanger assembly. Designed for durability in demanding environments, the R77160 features a 1/4" compression connection for secure, leak-proof integration into existing pneumatic lines. As an OEM replacement pressure switch, it maintains the original equipment's airflow safety parameters, preventing operation under restricted or failed blower conditions. Technicians can rely on this HVAC pressure sensor for consistent electrical continuity and accurate sensing of low-pressure thresholds. Its robust diaphragm construction is built to withstand rapid cycling and environmental stressors common in commercial HVACR applications, ensuring the protective interlock remains reliable throughout the system's operational lifecycle.

• Exact OEM Spec: Specifically calibrated at 0.45" WC to match Aaon system requirements without field adjustment.
• Secure Fitting: The 1/4" compression connection ensures a vibration-resistant seal compared to standard push-on fittings.
• System Integrity: Fast-acting SPST switch logic provides immediate feedback to the control board to protect against combustion or airflow failures.
• Reliable Construction: High-grade materials resist fatigue in high-ambient and varying static pressure environments.

Is the R77160 field-adjustable?
No, this is a fixed 0.45" WC switch. Attempting to adjust the set point may lead to safety failures or equipment damage; always use factory-calibrated sensors to ensure HVAC safety compliance.

What causes this switch to trip frequently?
Frequent tripping usually indicates restricted airflow, such as clogged filters, a failing blower motor, or obstructed heat exchanger flues rather than a faulty differential pressure switch.

Can I use a generic 0.45" WC switch instead?
While the set point may match, the Aaon R77160 utilizes specific physical dimensions and 1/4" compression fittings necessary for proper mounting and clearance within Aaon cabinets.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
