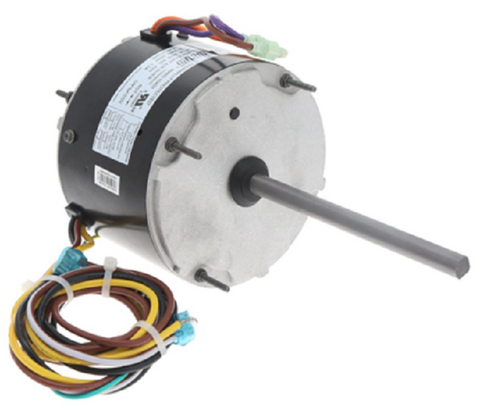

Amana-Goodman PP3403 Motor

208-230v 1/6HP 825RPM COND MTR

PP3403 is the direct replacement for 10584323

Amana-Goodman PP3403 Motor – 208–230 V 1/6 HP 825 RPM Condenser Fan Motor

Upgrade or replace your HVAC condenser fan motor with the Amana-Goodman PP3403 Motor, engineered for dependable cooling performance and energy efficiency. This single-speed, totally-enclosed motor is designed for a wide range of Amana, Goodman, and compatible air-conditioning systems.

Key Features

• Voltage & Power: 208–230 V, 1/6 HP single-phase motor delivers consistent, efficient operation.

• Speed & Protection: 825 RPM with an automatic thermal protector for added safety.

• Durable Build: Class “B” insulation, ball bearings, and Rheem-style shell holes ensure long service life.

• Electronically Reversible: Easily switch rotation direction for versatile installation.

• Energy Efficient: Designed for 60 Hz systems with low amp draw (1.0–1.1 A) to help reduce energy costs.

• UL/CSA Approved: Meets stringent safety and performance standards.

Specifications

• Shaft Size: 1/2" x 6"

• Capacitor: 5 MFD, 370 V

• Ambient Temperature: Up to 60 °C

• Lead Length: 36"

• “BM” Dimension: 4.11

The PP3403 condenser fan motor is an ideal OEM replacement for Amana and Goodman air conditioners or compatible HVAC units. Its rugged construction and energy-saving design ensure reliable airflow and optimal system efficiency.

Order the Amana-Goodman PP3403 Motor today for fast shipping and dependable cooling performance season after season.
