Beckett Igniter PF20372U Pump

PUMP 1/S 3GPH 12VDC CC

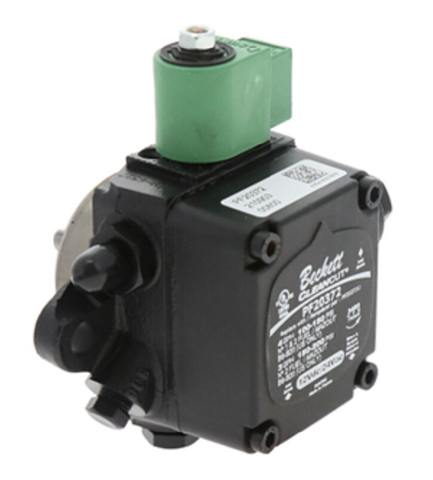

Beckett PF20372U 12VDC CleanCut Oil Burner Fuel Pump – 3 GPH, Green Body Solenoid

The Beckett PF20372U CleanCut Fuel Pump is a high-efficiency 12VDC oil burner pump designed for reliable performance in heating systems using No. 2 or lighter fuel oils. Also known under part numbers 2184402U and PF10372U, this pump is a direct replacement for Suntec A2EA-6527 and features Beckett's CleanCut technology for reduced oil consumption and cleaner combustion.

This 1-stage fuel pump includes a 12-volt green body solenoid, built-in cord set, and is factory-set at 100 PSI, with an adjustable pressure range up to 200 PSI. With a maximum flow rate of 4 GPH, 3 GPH operating flow, and 3450 RPM max speed, this pump ensures dependable fuel delivery for mobile and off-grid heating applications.

Key Features:

• Manufacturer: R.W. Beckett

• Part Number: PF20372U (Replaces 2184402U & PF10372U)

• Alternate Model: Suntec A2EA-6527

• Pump Type: CleanCut Oil Burner Fuel Pump

• Voltage: 12VDC

• Flow Rate: 3 GPH (Max 4 GPH)

• Solenoid: Built-in 12V Green Body

• Pressure: Factory set at 100 PSI (Adjustable to 200 PSI)

• Max Speed: 3450 RPM

• Inlet Pressure: 10 PSI

• Fuel Compatibility: No. 2 or lighter fuel oils

• Applications: Mobile heating units, off-grid oil burners, RV heating systems

Benefits:

• CleanCut solenoid technology reduces nozzle coking

• Fast and easy installation with integrated cord set

• Reliable fuel delivery in demanding conditions

• Ideal for 12V mobile and off-grid systems

Upgrade or replace your fuel pump with the Beckett PF20372U CleanCut Pump for enhanced efficiency and cleaner burning. In stock now – order today for fast shipping and trusted Beckett performance!
