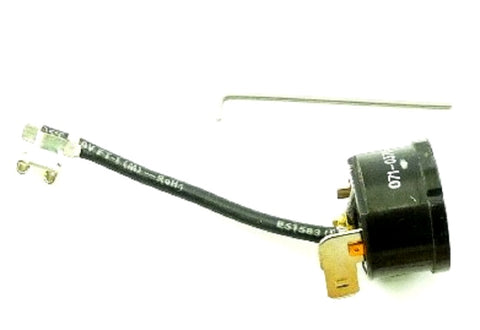

Copeland 971-0370-29 Motor Protector

The Copeland 971-0370-29 Motor Protector is an essential diagnostic and safety component engineered to prevent catastrophic stator failure in industrial-grade compressors. As a veteran-preferred Copeland compressor motor protector, this module utilizes advanced internal sensing to monitor motor winding temperature and current draw in real-time. By providing a precise break-contact response during abnormal thermal or electrical events, it mitigates the risk of insulation breakdown and the costly downtime associated with a full system burnout. This specific HVAC motor protection module is designed for seamless integration within standard control enclosures, offering a compact footprint for field replacements and new installs alike.

For technicians managing large-scale refrigeration or air conditioning plants, the Copeland 971-0370-29 serves as a critical fail-safe against compressor overheating and Phase Loss/Unbalance conditions. Its rapid-trigger logic ensures the motor is disconnected from the power source before permanent damage occurs, maintaining the operational integrity of the entire refrigerant circuit. Whether you are performing routine maintenance or troubleshooting a tripped system, having this OEM replacement motor protector on hand is vital for ensuring high-performance reliability in demanding commercial environments.

• Thermal Overload Mitigation: Actively monitors internal winding heat to prevent winding failure during high-load periods.
• Universal Copeland Compatibility: Designed to fit a wide range of Copeland semi-hermetic and screw compressors utilizing electronic protection.
• Reduced Maintenance Costs: Prevents avoidable motor burnouts, extending the service life of expensive compressor units.
• Precise Electrical Monitoring: Detects current anomalies effectively to avoid false tripping while ensuring rapid response during genuine faults.
• Durable Construction: Built to withstand the vibration and temperature fluctuations common in industrial mechanical rooms.

How do I troubleshoot a tripped Copeland motor protector?
First, verify if the trip was caused by a genuine thermal overload or an electrical phase issue. Measure the resistance across the protector terminals; an open circuit usually indicates a trip or a faulty internal sensor. Ensure all wiring connections are secure and that the compressor is operating within its specified voltage and current parameters before resetting or replacing the module.

Can I bypass the 971-0370-29 if the compressor is running hot?
Absolutely not. Bypassing a protection module is a direct violation of safety protocols and will lead to permanent stator damage. If the protector is tripping, it is performing its intended function. You must identify the root cause—such as low refrigerant flow, high head pressure, or poor electrical supply—rather than disabling the safety device.

Does this module protect against single-phasing?
Yes, by monitoring the heat generated by the increased current in the remaining phases, the protector will eventually break the control circuit to safeguard the motor windings from the effects of a lost phase.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
