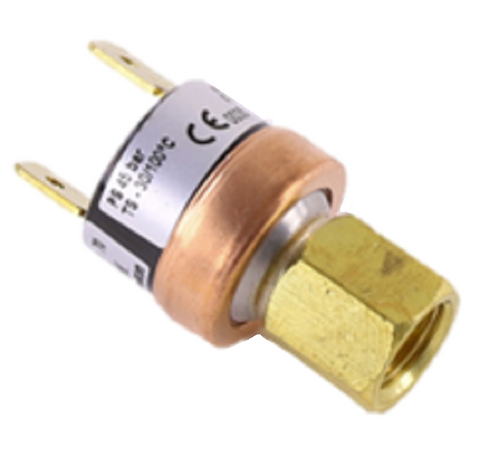

Danfoss 061F7315 ACB Cartridge Pressure Switch | SPST(NO), 1/4" Flare, Auto Reset, 120/70 PSI

The Danfoss 061F7315 is a high-quality ACB Cartridge Pressure Switch designed for reliable performance in HVAC and refrigeration systems. With an automatic reset function and SPST normally open contact configuration, this pressure switch ensures safe and efficient pressure control in high-pressure applications. It is compatible with a wide range of refrigerants including R134a, R410A, R404A, and more.

🔧 Key Features:

• Model: 061F7315

• Type: ACB Cartridge Pressure Switch

• Contact Function: SPST (Normally Open)

• Reset Function: Automatic

• Pressure Activation:

  • Higher: 120 PSI (8.27 bar)

  • Lower: 70 PSI (4.83 bar)

• Pressure Connection: 1/4" Flare (Female)

• Electrical Connection: Spade Connectors

• Enclosure Rating: IP40

🌡️ Operating Conditions:

• Ambient Temperature Range: -30°C to 85°C (-20°F to 185°F)

• Medium Temperature Range: -55°C to 135°C (-70°F to 275°F)

• Max Working Pressure: 45 bar / 653 psig

• Burst Pressure: 200 bar / 2900 psig

⚙️ Certifications & Compliance:

• Approvals: CE, TÜV, UL Recognized (UL60730)

• RoHS & REACH Compliant (with exemptions)

• Proposition 65 Warning: California Proposition 65 Warning

✅ Compatibility:

• Approved for refrigerants: R134a, R22, R410A, R407C, R404A, R125, R513A, R438A, R448A, R449A, R452A, R407H

• Suitable for oil-free applications

📦 Product Details:

• Weight: 0.03 kg gross / 0.027 kg net

• Dimensions: Compact industrial format

• Mounting Orientation: Vertical ± 45°

• Part Number: 061F7315

• EAN: 5702428265898

Optimize pressure control and safety with the Danfoss 061F7315 ACB Cartridge Pressure Switch — trusted for performance, reliability, and compatibility with leading refrigerants in demanding HVACR applications.
