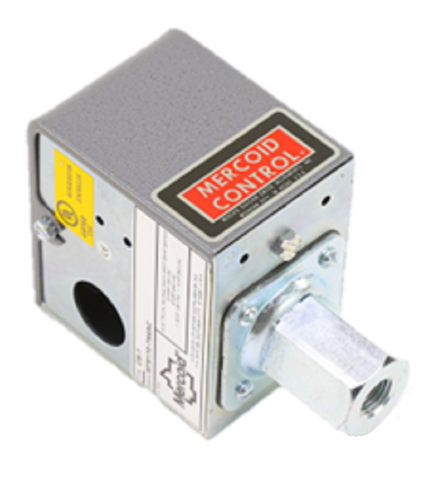

Dwyer Instruments CS-1 Pressure Switch

Pressure Switch, Diaphragm, 1-30" Hg Vacuum, Fixed Deadband, 1.5" Hg Deadband Value, SPDT Snap Switch, 1/4" Process Connection, 30 Psig Pressure Limit

Dwyer Instruments CS-1 Pressure Switch – Diaphragm, 1-30" Hg Vacuum, Fixed Deadband

The Dwyer Instruments CS-1 Pressure Switch is an affordable and reliable diaphragm pressure switch designed to measure vacuum pressure with exceptional accuracy. Ideal for a range of industrial and commercial applications, this low-cost pressure switch offers an adjustable range of 1-30" Hg (25.4-762 mm Hg), making it versatile enough for various pressure monitoring needs.

Key Features & Benefits:

• Adjustable Range: Covers a vacuum pressure range from 1-30" Hg (25.4-762 mm Hg), providing flexibility in various applications.
• Fixed Deadband: Features a fixed deadband of 1.5" Hg (38 mm Hg) to enhance stability and minimize fluctuations.
• SPDT Snap Switch: Equipped with a Single-Pole Double-Throw (SPDT) snap switch for reliable performance and ease of integration.
• Durable Construction: Designed with a diaphragm for durable, long-lasting use in demanding environments.
• Process Connection: Comes with a 1/4" process connection for straightforward installation.
• Pressure Limit: Rated for a pressure limit of 30 Psig, ensuring safe and reliable operation.
• Cost-Effective: Provides high-quality performance at a low cost, making it an excellent value for various pressure control needs.

Specifications:

• Model: CS-1
• Range: 1-30" Hg (25.4-762 mm Hg) Vacuum
• Deadband: Fixed 1.5" Hg (38 mm Hg)
• Switch Type: SPDT Snap Switch
• Process Connection: 1/4"
• Pressure Limit: 30 Psig
• Construction: Diaphragm
• Application: Vacuum pressure monitoring and control
• Brand: Dwyer Instruments

The Dwyer Instruments CS-1 Pressure Switch offers precision, durability, and affordability, making it an ideal choice for a wide variety of vacuum pressure monitoring applications.
