Eaton Cutler-Hammer XTOB040DC1 Overload

24-40A OVERLOAD

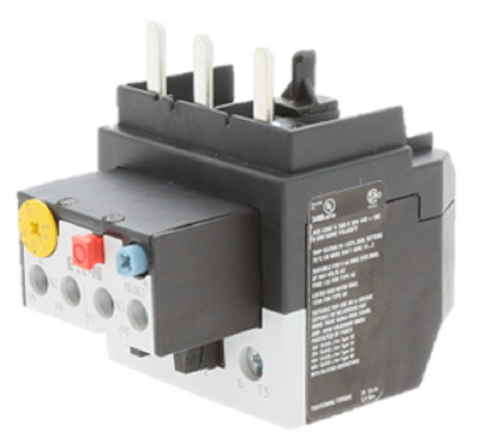

Eaton Cutler-Hammer XTOB040DC1 Overload Relay – 24-40A XT IEC Bimetallic

The Eaton Cutler-Hammer XTOB040DC1 is a high-quality XT IEC bimetallic overload relay designed to provide reliable motor protection in demanding applications. With an overload range of 24-40A, this relay safeguards motors from excessive current and thermal overload, ensuring both safety and efficiency in industrial and commercial settings.

Key Features:

• Product Type: XT IEC Bimetallic Overload Relay

• Catalog Number: XTOB040DC1

• Overload Range: 24–40A

• Trip Type: Class 10 A

• Frame Size: 55 mm

• Contact Configuration: 1 NO, 1 NC

• Mounting: Direct

• Used With: 40–72A contactors

• Dimensions: 3 in (L) x 4 in (W) x 2 in (H)

• Weight: 0.4 lb

Certifications & Compliance:

• UL Listed, CSA Certified

• IEC 60947, EN 60947

• RoHS Compliant, ATEX Compliant, CE Marked

• Suitable for protection of EEx e-motors

• EC prototype test certificate available upon request

Applications:
The Eaton XTOB040DC1 overload relay is ideal for motor protection in industrial machinery, automation systems, and control panels. It ensures long-term reliability and is designed for direct device mounting with compatible Eaton contactors.

Ensure superior motor protection and compliance with international safety standards by choosing the Eaton Cutler-Hammer XTOB040DC1 24–40A Overload Relay for your next project.
