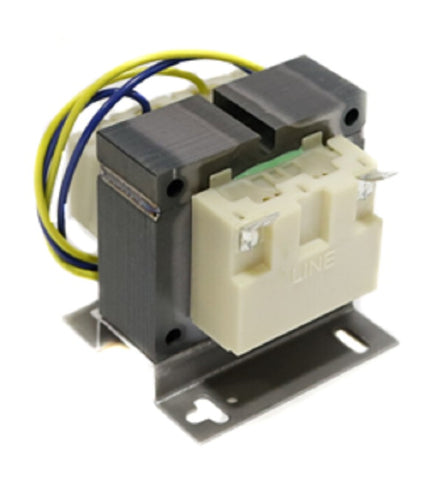

Lennox 47W02 Transformer

TRANSFORMER 480V 24V 75VA

47W02 is the direct replacement for 101908-01

Lennox 47W02 Transformer – 480V to 24V, 75 VA, Class 2 with 3.2A Circuit Breaker

The Lennox 47W02 (Part #101908-01) is a high-performance Class 2 transformer engineered for reliability in HVAC and electrical applications. Designed with a 480V primary input and 24V secondary output, this transformer delivers up to 75 VA of power and includes a 3.2 Amp circuit breaker for built-in overcurrent protection, ensuring safe and dependable operation.

Key Features:

• Brand: Lennox

• Catalog Number: 47W02

• Manufacturer Part #: 101908-01

• Transformer Type: Class 2

• Primary Voltage: 480 VAC, 50/60 Hz

• Secondary Voltage: 24 VAC

• VA Rating: 75 VA

• Overcurrent Protection: Integrated 3.2 Amp circuit breaker

• Mounting Type: Foot mount for secure installation

• Connection Type: Leads and quick-connect terminals

• Gross Weight: 2.566 lbs

• UPC: 66255140869

Applications: Ideal for HVAC systems and electrical panels requiring a reliable step-down transformer. Commonly used in Lennox units and compatible systems that require 24V control voltage.

Why Choose the Lennox 47W02 Transformer?
With robust construction, trusted performance, and integrated safety features, the Lennox 101908-01 transformer offers superior protection and efficiency. Whether for replacement or new installations, it ensures long-term reliability in commercial and residential systems.
