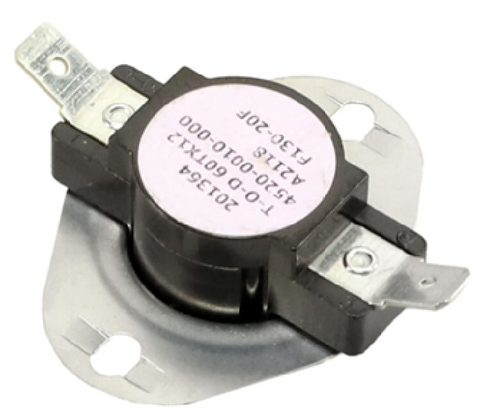

Marley Engineered Products 4520-0010-000 Relay

The Marley Engineered Products 4520-0010-000 Relay is a specialized fan delay relay designed for precise thermal management in electric forced-air heating systems. Specifically engineered as the F130-20F model, this SPST fan relay protector ensures the blower motor only activates once the heating element reaches 130°F, effectively preventing the circulation of cold air during the initial startup phase. Conversely, it maintains fan operation for a predetermined period after the thermostat is satisfied, facilitating maximum heat extraction from the plenum and increasing overall system efficiency. This genuine OEM heating replacement part is the standard specification for Marley, QMark, and Berko wall heaters, providing an exact fit for maintenance and repair cycles. Its rugged, modular construction is built to withstand the high-temperature environments of commercial and residential ventilation units, ensuring long-term reliability and reducing the risk of premature blower motor wear caused by rapid cycling.

• Optimized Heat Distribution: Integrated delay logic ensures the fan only distributes warm air, enhancing occupant comfort and system performance.
• Universal Component Compatibility: Direct drop-in replacement for Berko, QMark, and Marley Engineered Products electric heating installations.
• Enhanced Motor Longevity: Prevents short-cycling and ensures the blower operates within its designated temperature parameters.
• Energy Efficiency: Maximizes the utilization of residual heat in the heating coils after the element has been deactivated.
• Simplified Field Service: Standard footprint and clear terminal identification allow for rapid diagnostic and replacement procedures by technicians.

What is the specific temperature trip point for this relay?
The F130-20F relay is calibrated to trigger at 130 degrees Fahrenheit, ensuring the heater is sufficiently primed before the HVAC blower switch engages.

Can this relay be used in non-Marley equipment?
While designed for Marley Engineered Products, this SPST time delay relay is compatible with various forced-air systems requiring an F130-20F specification, provided electrical ratings are met.

Does this part assist in preventing cold drafts at the start of a cycle?
Yes, by delaying the blower until the heating elements are hot, it eliminates the "cold blow" effect common in poorly regulated electric heaters.
