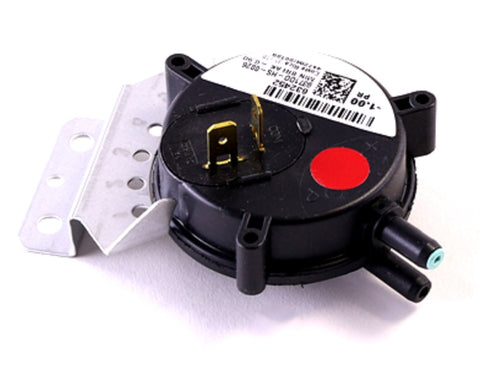

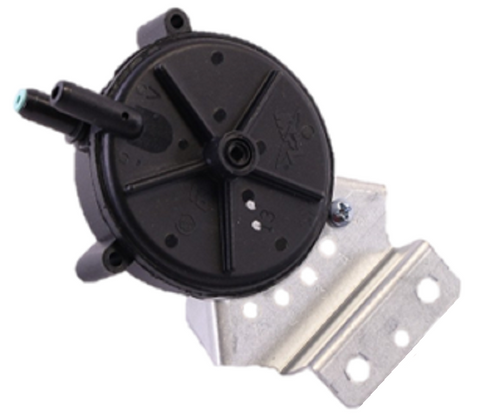

Nordyne 632452R Pressure Switch

The Nordyne 632452R Pressure Switch is a critical OEM safety component for gas-fired furnaces and HVAC systems. As a Single Pole Single Throw (SPST) air pressure sensing switch, it is calibrated to a precise -1.00" WC (Water Column) set point. This switch serves as the direct 632390 replacement, ensuring proper airflow verification for the combustion process. When the inducer motor or draft booster creates the required negative pressure, the switch closes the circuit to the ignition control, preventing the burner from firing under unsafe venting conditions. Featuring a 1/4" barbed connection for standard vacuum tubing, this switch is engineered for high-cycle reliability in residential and light commercial Nordyne, Miller, and Intertherm units.

Key Benefits for Technicians:

• Direct OEM Replacement: Replaces Nordyne 632390 without the need for mounting bracket modifications or electrical adapters.
• Precise Calibration: Factory-set at -1.00" WC to maintain strict system safety tolerances and prevent nuisance trips or delayed ignition.
• Industrial Build Quality: High-integrity SPST pressure switch contacts designed to withstand heat cycles and humidity within the furnace cabinet.
• Standardized Fitment: The 1/4 inch barbed fitting ensures a leak-proof seal with standard OEM silicone or rubber vacuum hoses.

Common HVAC Technical Questions:

How do I verify if the Nordyne 632452R is failing?
Use a manometer to check if the inducer motor is pulling at least -1.00" WC. If the negative pressure is sufficient but the SPST switch fails to close continuity, the internal diaphragm or electrical contacts have likely failed.

Can I use this switch for a positive pressure application?
No, this specific Nordyne HVAC part is designed specifically for negative pressure sensing in the combustion assembly. Using it for positive pressure will result in incorrect switching logic.

Does this switch handle high voltage?
This pressure switch is typically used in 24V AC control circuits. Always verify your specific wiring diagram before installation to ensure the load does not exceed the switch's contact rating.
