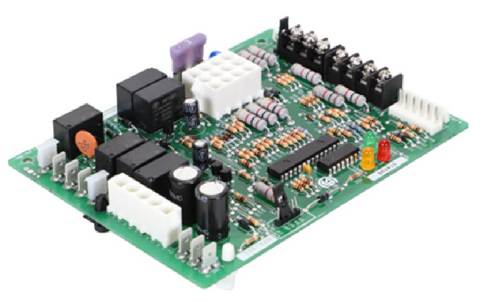

Nordyne 920916A Control

The Nordyne 920916A Control is a critical 2-stage furnace control board engineered for precision performance in high-efficiency HVAC systems. This integrated furnace control (IFC) serves as the central logic processor for managing dual-stage heating and cooling cycles, allowing for tighter temperature differentials and reduced equipment cycling. As a direct replacement for Nordyne 920916, this board ensures backwards compatibility and seamless integration with existing wiring harnesses and 24V thermostat interfaces. The 920916A control module features sophisticated timing profiles for inducer motor speeds and blower fan delays, which are essential for maintaining secondary heat exchanger integrity and maximizing AFUE ratings. Built to withstand the thermal stresses of a furnace cabinet, this Nordyne OEM part provides the reliable spark ignition and flame sensing sequences required for safe, high-output operation in residential and commercial applications.

Key Technical Benefits

• Enhanced Staging Logic: Optimizes 2-stage heating cycles to reduce energy consumption and improve indoor air distribution.
• OEM Compatibility: Specifically designed as the 920916 replacement board, ensuring correct pin-to-pin alignment and voltage regulation.
• System Protection: Includes integrated diagnostic LED indicators to streamline troubleshooting for service technicians and monitor flame current.
• Advanced Fan Control: Manages blower transitions between stages to maintain optimal static pressure and airflow across the evaporator coil.

Common Questions

Is the 920916A compatible with my single-stage thermostat?
While the Nordyne 920916A Control is designed for two-stage hvac systems, it can often be configured for single-stage thermostats using the board's internal staging timer, though a 2-stage thermostat is recommended for peak efficiency.

What does it mean if the diagnostic LED is flashing?
The onboard LED provides specific fault codes, such as pressure switch stuck open, limit circuit lockout, or low flame signal, allowing for rapid diagnosis without extensive meter testing.

Can I use this to replace a 920916 board?
Yes, the 920916A is the direct updated replacement for the older 920916 model, featuring the same mounting footprint and terminal designations.
