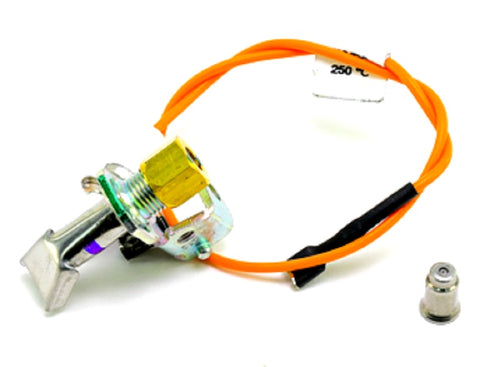

Robertshaw 1830-702 Pilot Electrode

The Robertshaw 1830-702 Pilot Electrode is a direct replacement spark ignition electrode designed for intermittent pilot systems and electronic ignition gas valves. Engineered with a specialized 2S-2 ceramic insulator, this component ensures sustained electrical isolation during high-voltage sparking sequences. It features a precision spark gap configuration necessary for reliable gas burner ignition in commercial cooking equipment and HVAC furnace applications. The durable construction withstands continuous exposure to thermal cycling, preventing carbon buildup and electrode fouling that often leads to ignition failure. Contractors typically utilize the 1830-702 when troubleshooting pilot-on-demand systems that fail to establish a flame signal or exhibit inconsistent spark duration. For optimal performance, ensure the mounting bracket is properly grounded to the burner assembly to maintain the necessary flame rectification circuit integrity required by the ignition control module.

Technical Specifications & Key Benefits

• High-Dielectric Ceramic Insulator: The 2S-2 electrode design provides superior resistance to voltage leakage, ensuring the spark jump occurs at the discharge point rather than through the insulator body.
• OEM Compatibility: Replaces common Robertshaw pilot assemblies used across various furnace, boiler, and commercial fryer brands.
• Corrosion-Resistant Tip: The alloy composition is treated to resist oxidation and high-temperature degradation, maintaining the spark gap over extended service life.
• Standard Terminal Connectivity: Features a universal terminal for secure integration with existing high-voltage ignition wires.

Common Installation Questions

How do I adjust the spark gap on the 1830-702?
The spark gap is factory-set for standard intermittent pilot applications, typically ranging between 1/8" and 3/16". Use a feeler gauge to verify alignment before securing the electrode to the pilot bracket.

What causes this electrode to fail prematurely?
Failures are usually caused by ceramic cracking from over-tightening or insulation breakdown due to excessive moisture and grease accumulation in commercial kitchen environments.

Is this electrode compatible with standing pilot systems?
No, the 1830-702 is specifically engineered for electronic ignition and spark-to-pilot systems. Standing pilots utilize thermocouples or thermopiles rather than high-voltage electrodes.
