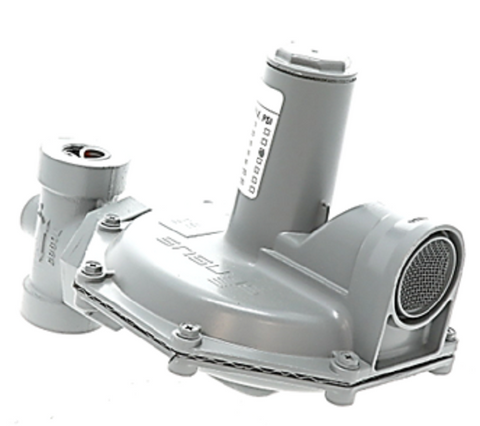

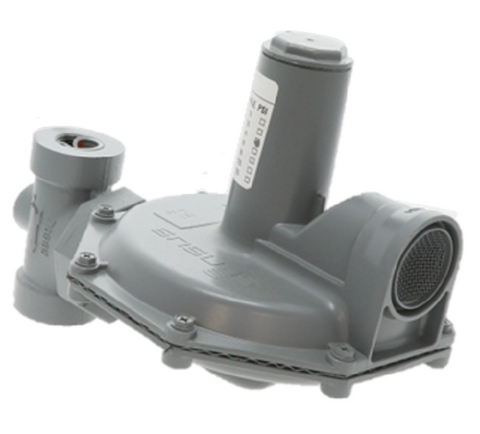

Sensus 143-3/4 Regulator

The Sensus 143-3/4 Gas Regulator is a robust solution designed for precise natural gas pressure regulation in residential and light commercial meter sets. This domestic service regulator features a 3/4" NPT pipe size and is equipped with a 3/8" orifice, optimized for high-capacity flow while maintaining stable downstream pressure. The internal green spring provides a versatile set point range of 6–14" w.c., making it ideal for standard low-pressure appliance requirements. Built for field durability, the 143-8 model series is recognized for its union nut connection, which allows for 360-degree diaphragm case rotation, simplifying installation in tight piping configurations. Whether utilized for LP gas systems or standard utility services, this Sensus gas regulator ensures consistent lock-up and relief performance to protect downstream equipment from overpressure conditions.

Technical Benefits for Contractors

• Versatile Mounting: The 360-degree rotation of the diaphragm housing allows for easy vent orientation in both horizontal and vertical piping runs.
• Precision Control: The 3/8 inch orifice balances flow capacity with sensitive pressure regulation to eliminate pilot flicker and appliance soot.
• Rugged Construction: Features a corrosion-resistant internal valve body and high-tensile strength components for commercial gas service longevity.
• Application Flexibility: Primarily used for natural gas, but fully compatible with dry propane gas applications when properly sized.

Common Questions & Installation Tips

What is the maximum inlet pressure for the 143-8 series?
While specific limits depend on orifice size, the 143-3/4 with a 3/8" orifice typically handles inlet pressures up to 125 PSIG, though local codes and specific Sensus 143-8 specifications should be verified for safety margins.

Can the green spring be swapped for higher pressure ranges?
Yes, the 143-8 series is field-serviceable. However, changing the spring to a different color (range) may require recalibration to ensure the water column inches output matches the appliance requirements.

How do I handle venting requirements for this regulator?
The regulator features a 3/4" NPT vent. For indoor installations, the vent must be piped to the atmosphere in accordance with NFPA 54 and local mechanical codes.
