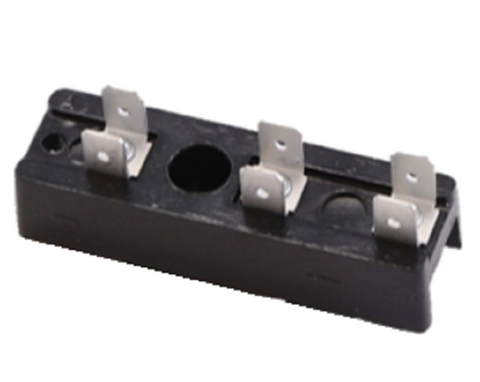

Trane BRD0385 Terminal Board

The Trane BRD0385 Terminal Board serves as a critical component for managing 24V signal distribution in residential and light commercial HVAC equipment. Engineered as a 1 pole fan terminal board, this OEM replacement part ensures reliable low-voltage communication between the thermostat and the indoor blower motor. Designed to withstand the thermal demands of consistent cycling, the BRD0385 features high-integrity conductive traces and secure spade connector terminals to prevent voltage drops and intermittent signal loss. This Trane terminal board is a direct drop-in for units requiring precise fan relay control and sequenced operations. When diagnosing airflow failures or control circuit shorts, replacing a scorched or failing BRD0385 control board restores system communication and prevents unnecessary wear on the transformer. This unit is optimized for 24V HVAC controls, providing a stable interface for field wiring while maintaining the factory-specified circuit pathway for OEM Trane heating and cooling systems.

• OEM Precision: Direct replacement for the Trane BRD0385 ensures mechanical and electrical compatibility without field modifications.
• Stable 24V Logic: Designed specifically for 1 pole fan control to maintain consistent 24VAC signal integrity.
• Simplified Wiring: Features clearly labeled terminal points to reduce installation errors and accelerate diagnostic testing.
• Industrial Build Quality: Constructed with flame-retardant materials and high-conductivity plating for long-term field reliability.

Is the BRD0385 compatible with 120V fan motors?

The BRD0385 is a low-voltage control board designed for the 24V signal circuit. It acts as the logic interface for the fan relay but does not directly handle high-voltage line power for the motor itself.

How do I verify if my Trane terminal board is faulty?

Check for continuity across the signal terminals and inspect the board for signs of carbon tracking or localized overheating. A failure in the Trane BRD0385 typically results in the fan failing to engage during a call for G (Fan) or Y (Cooling).

Can I use this board in generic air handlers?

While this is a 24V terminal board, it is specifically configured for Trane and American Standard footprints. Always verify the specific part number in the manufacturer's logic diagram to ensure correct pinouts.
