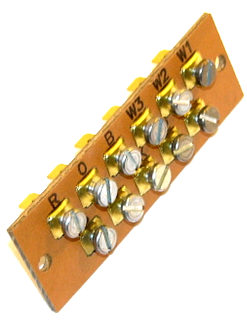

Trane BRD0477 Terminal Board

The Trane BRD0477 Terminal Board is a high-integrity 11-pole terminal board engineered for reliable electrical distribution within residential and light commercial HVAC systems. This genuine OEM Trane part serves as a centralized junction point, allowing technicians to consolidate wiring from thermostats, air handlers, and outdoor condensers into a single, organized interface. Built to handle standard low-voltage control signals, the BRD0477 features a robust silver-faced design and an integrated copper ground lug that accepts #10 copper wire, ensuring electrical safety and reducing the risk of signal interference. For 2-stage heat pump applications, this board provides dual circuits capable of managing up to three auxiliary heating stages. The inclusion of an internal set screw and a protective plastic cover with a grommet facilitates professional-grade wire management and protection against localized debris. Whether you are performing a Trane control board replacement or a fresh installation, this terminal board ensures HVAC wiring terminal integrity and long-term system stability.

• 11-Pole Configuration: Provides extensive connectivity for complex multi-stage heating and cooling setups, facilitating easier HVAC circuit board repair troubleshoot.
• Enhanced Wire Management: Features internal set screws and a dedicated copper ground bar for secure, vibration-resistant terminations.
• OEM Compatibility: Designed specifically as a direct replacement for the BRD00477, ensuring exact fit and function without modify field wiring.
• Protection: Includes a high-build temperature plastic cover to shield sensitive electrical connections from environmental contaminants.

Does this board support multi-stage heat pumps?
Yes, the Trane BRD0477 is specifically designed to service 2-stage heat pumps and can handle the signaling for up to three auxiliary systems.

What wire size is recommended for the grounding lug?
The integrated snap-out grounding lug is engineered to accommodate a standard #10 copper wire for consistent grounding path integrity.

Can this be used in outdoor unit cabinets?
While often located in indoor air handlers, its robust construction and included grommeted cover make it suitable for outdoor coil wall inlets and terminal box installations.
