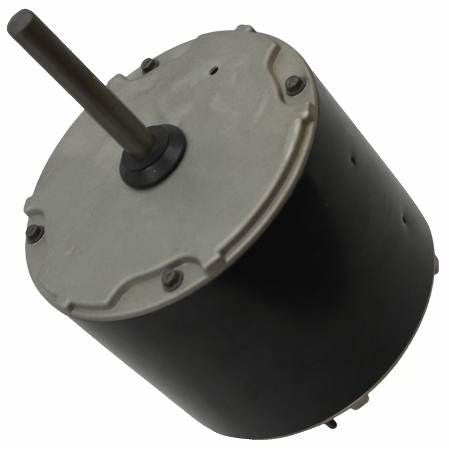

Amana-Goodman 0131M00430SF Motor Kit

The Amana-Goodman 0131M00430SF Motor Kit is a direct-drive 1/3 HP condenser fan motor designed for high-static pressure applications in residential and light commercial condensing units. This single-speed PSC motor operates at 1075 RPM with a 208-230V power supply, ensuring consistent airflow across the outdoor coil for optimal heat rejection. Built with a NEMA 48 frame and a 1/2-inch diameter shaft, it serves as a drop-in replacement for numerous legacy furnace and AC models. This kit typically replaces previous generations including the 0131M00430 and 0131M00430S. The motor features ball-bearing construction for increased durability in vertical shaft-up or shaft-down positions. To ensure proper operation and protect the internal windings, a 5 MFD / 370V capacitor is required (sold separately). Utilizing an OEM replacement motor preserves the original equipment's performance curves and electrical safety certifications without requiring field modifications to the mounting bracket.

Key Benefits:

• Universal mounting: Designed for standard 48-frame belly band or stud mounting configurations in Goodman and Amana units.
• High-Efficiency Performance: Permanent Split Capacitor (PSC) design provides reliable torque while maintaining a low amp draw.
• Direct OEM Replacement: Eliminates the need for shaft cutting or lead splicing, reducing labor time during service calls.
• Weather-Resistant Housing: Sealed motor housing protects components from debris and moisture common in outdoor condenser environments.

Common Questions:

What is the correct capacitor for the 0131M00430SF?
This motor requires a 5 MFD 370-volt run capacitor. Reusing an old capacitor can lead to premature motor failure or starting issues.

Is this motor reversible?
The 0131M00430SF is typically CCW (Counter-Clockwise) Lead End, matching the factory rotation of standard Goodman condenser fans.

Will this motor work for 460V systems?
No, this specific part is rated for 208-230V single-phase systems only. Verifying voltage at the contactor is essential before installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
