Amana-Goodman 11009003 Motor Assembly

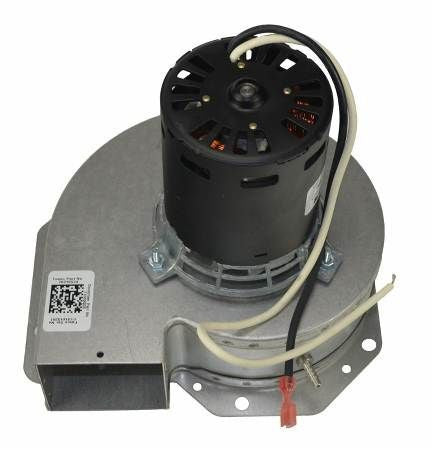

The Amana-Goodman 11009003 Inducer Motor Assembly is a critical OEM replacement component designed for high-efficiency gas furnaces. This assembly functions as a draft inducer blower, responsible for pulling combustion gases through the heat exchanger and exhausting them through the flue. By creating the necessary static pressure to close the furnace pressure switch, it ensures the ignition sequence proceeds safely. Engineered to meet exact Goodman furnace parts specifications, this 115V inducer motor features a balanced centrifugal blower wheel to minimize vibration and mechanical wear on the bearings. Precise RPM calibration ensures optimal airflow through the heat exchanger, preventing premature heat stress and ensuring consistent condensing furnace combustion. For technicians performing HVAC 11009003 repairs, this factory-tested unit provides a drop-in fit with the correct lead lengths and mounting bracket alignment for rapid field installation.

Key Benefits for Contractors

• Direct OEM Replacement: Ensures electrical compatibility and physical alignment with Amana and Goodman chassis, eliminating the need for field modifications.
• Integrated Housing: Includes the pre-assembled blower housing and motor, reducing the time required for furnace inducer motor replacement.
• Factory-Tested Reliability: Each unit is bench-tested to verify amperage draw and torque specifications before shipping.
• System Safety: Maintains the specific CFM requirements needed to actuate the combustion safety circuit and maintain venting integrity.

Common Questions

Is this the correct motor if my pressure switch won't close?
If the motor is drawing power but failing to reach the required RPM or if the wheel is obstructed, it will not generate the vacuum needed to close the pressure switch. Verify the motor bearings and vent pipe for obstructions before installation.

Does this unit include the required gaskets?
While this is the 11009003 assembly, it is professional practice to inspect the inducer gasket and use high-temp silicone or a new seal to prevent combustion gas leakage into the cabinet.

Can I use a universal motor instead of this OEM part?
Using an OEM Goodman 11009003 ensures the motor operates within the precise static pressure parameters required by the furnace control board and safety sequence.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
