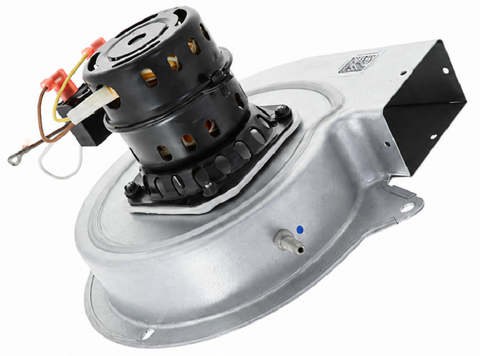

Amana-Goodman 0131M00002PSP Ventor/Inducer Assembly

The Amana-Goodman 0131M00002PSP Ventor/Inducer Assembly is a critical engineering component for ensuring safe combustion and flue gas extraction in 80% AFUE furnaces. As a high-performance Goodman furnace draft inducer motor, this assembly operates at 3000 RPM on a 115V, 60Hz single-phase circuit. It is precision-weighted at approximately 1/50 HP to maintain the specific static pressure required for pressure switch closure. This OEM replacement induction motor package includes the essential inducer motor gasket (B1392633) to prevent carbon monoxide leakage at the collector box interface. Designed for seamless integration, the 0131M00002PSP is the verified successor to legacy part numbers 119276-00, 0131M00002P, 4-3324-I-SGL, and REV001FS. For a reliable Goodman inducer motor replacement that meets factory thermal protection and insulation class F standards, this 0131M00002PSP assembly ensures consistent airflow and system uptime for your clients' heating equipment.

This item is not eligible for free shipping.

• Direct OEM Compatibility: Verified Goodman furnace part that eliminates the need for mounting bracket modifications in Amana, Goodman, and Janitrol 80% non-condensing units.
• All-In-One Kit: Includes the pre-installed capacitor (6MFD) and specialized viton or felt gasket for a complete, secure seal upon installation.
• Technical Reliability: Features an internal auto-reset thermal protector to prevent winding failure during high-static operational conditions.
• Optimized Performance: Operates at 0.40 - 0.50 Amps, maintaining the calibrated exhaust blower velocity needed for consistent ignition cycles.

Is the gasket included with the 0131M00002PSP assembly?
Yes, this assembly is shipped with the necessary high-temperature gasket (part # B1392633) to ensure a gas-tight seal between the motor housing and the furnace flue collector box.

Which furnace models use this specific inducer motor?
The 0131M00002PSP is most commonly found in Goodman and Amana 80% AFUE furnaces, including the popular GMS8, GDS8, and AMH8 series. Always verify the part number against the unit's original data plate.

Does this motor replace the older 119276-00 Jackel motor?
Yes, the 0131M00002PSP is the current HVAC inducer assembly replacement for the 119276-00, offering improved bearing durability and thermal management compared to the legacy Jackel designs.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
