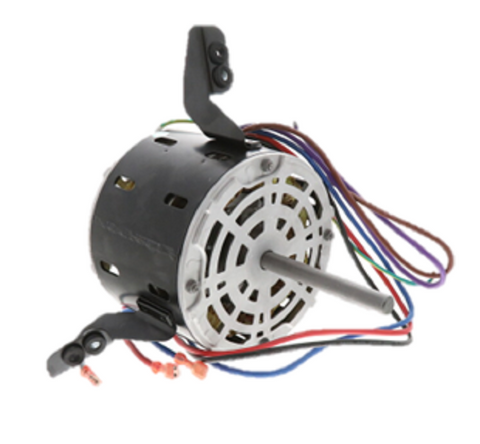

Amana-Goodman 0131M00005PSP Motor

The Amana-Goodman 0131M00005PSP is a direct-drive PSC blower motor engineered for high-static applications in residential air handlers and furnaces. Operating at 1/3 HP with a 208/230V single-phase power supply, this 1075 RPM motor features a 3-speed configuration, allowing for precise airflow adjustments to match system tonnage and ductwork requirements. Built with a 6-pole permanent split capacitor design, it requires a 5 MFD / 370V capacitor for optimal torque and startup efficiency. This OEM replacement ensures the correct NEMA frame size and shaft dimensions for a drop-in fit, maintaining the blower assembly's factory-rated CFM. The motor utilizes high-grade sleeve bearings for quiet operation and thermal overload protection to prevent winding failure during high-head pressure scenarios. When replacing an ASG blower motor, verify the lead wire length and plug configuration to ensure seamless integration with the existing control board or transformer taps.

• OEM Compatibility: Exact drop-in replacement for Goodman, Amana, and Janitrol air handlers.
• Multi-Speed Versatility: 3-speed taps provide field flexibility for heating and cooling transitions.
• Enhanced Durability: Thermal overload protection prevents premature failure under heavy electrical loads.
• Standardized Specs: Uses standard 5/8-inch shaft diameter for compatibility with standard blower wheels.

Common Questions

What capacitor is required for the 0131M00005PSP?
This motor requires a 5 MFD / 370 Volt run capacitor for proper induction and operation.

Can I use this to replace a 115V motor?
No, this is a 208/230V motor. Applying 115V will result in low torque and failure, while applying 230V to a 115V circuit is a fire hazard.

Is the rotation reversible on this motor?
Standard 0131M00005PSP motors are typically set for CCWLE (Counter-Clockwise Lead End) rotation; always verify your blower wheel rotation before installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
