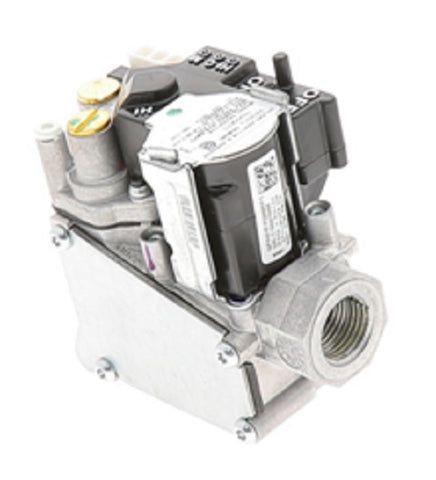

Amana-Goodman 0151F00000PS Gas Valve

The Amana-Goodman 0151F00000PS is a high-performance 2-stage natural gas valve designed for precision fuel regulation in high-efficiency furnaces. This White-Rodgers 36G54-238 replacement features a 1/2" NPT inlet and outlet, operating on a standard 24V HVAC control circuit to manage manifold pressure for both low and high-fire stages. Engineered as the direct OEM 0151F00000P replacement, this valve is factory-calibrated for 3.5" WC manifold pressure on the high stage and 2.0" WC on the low stage, ensuring optimal combustion efficiency in GMV, GCV, and AMV series units. The fast-opening characteristic and 140,000 BTU capacity provide the reliability needed for demanding residential heating cycles. It is a critical component for technicians performing a furnace gas valve replacement where exact voltage and pressure specifications are required to maintain system safety and performance standards. This genuine Goodman replacement part integrates seamlessly with existing hot surface or direct spark ignition systems.

• Dual-Stage Precision: Specifically engineered for 2-stage heating systems to maximize fuel efficiency and consistent temperature control.
• Direct OEM Fit: Serves as the factory-authorized replacement for 0151F00000P, eliminating the need for manifold modifications.
• Optimized Flow: Supports up to 140,000 BTU for natural gas applications with a 1/2" NPT connection size for standard piping.
• Standardized Voltage: Operates on 24VAC, 50/60 Hz, ensuring compatibility with most modern Amana-Goodman furnace parts.

Is this valve compatible with LP (Liquid Propane) systems?
The Amana-Goodman 0151F00000PS is factory-set for natural gas. For LP applications, a separate LP conversion kit (such as the LPM-01A) is required to adjust the regulator settings and orifices safely.

Can I use this to replace a single-stage gas valve?
No, this is a 2-stage gas valve designed for multi-stage control boards. You must verify that your furnace model supports dual-stage firing to ensure the 24V signals are sent correctly to the high and low-stage solenoids.

What are the manifold pressure settings for this model?
This natural gas valve is typically factory-set at 2.0" WC for low fire and 3.5" WC for high fire. Always use a manometer during installation to verify and adjust pressures to the specific requirements found on the furnace rating plate.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
