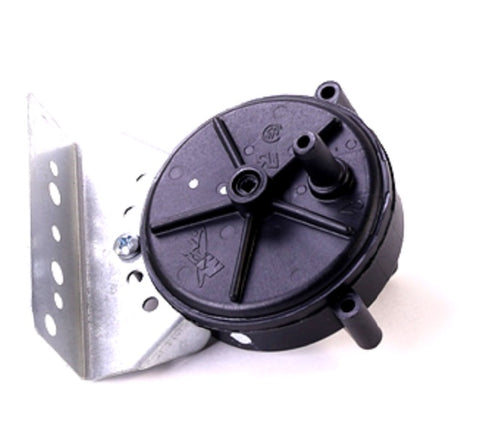

Amana-Goodman 10207901 Pressure Switch

The Amana-Goodman 10207901 Pressure Switch is a critical safety component for high-efficiency gas furnaces. Engineered with a -0.90" WC setpoint and a Single Pole Single Throw (SPST) configuration, this OEM part ensures the inducer motor is generating sufficient negative pressure before the ignition sequence begins. Designed for compatibility with various Goodman and Amana models, it features dual 1/4" barb connections for secure pneumatic tubing attachment. This switch replaces several legacy parts, offering a reliable solution for technicians troubleshooting 3-flash diagnostic codes or intermittent cycling issues in condensing gas furnaces. Built to withstand the harsh environment of an HVAC cabinet, the Amana-Goodman 10207901 maintains tight tolerances to prevent combustion hazards and optimize equipment performance. When replacing a furnace draft inducer switch, always verify the pressure rating on the existing component's faceplate to ensure a precise match with this 10207901 OEM replacement.

Key Benefits

• Precise Airflow Sensing: Calibrated to a -0.9" WC rating to accurately monitor inducer blower performance.
• OEM Standards: Genuine Amana-Goodman 10207901 replacement part ensures direct fitment and factory-grade reliability.
• Reliable Connections: Features dual 1/4" barb ports for a leak-proof seal with standard vacuum hoses.
• System Protection: Prevents furnace operation during venting obstructions or inducer motor failure.
• Easy Installation: Standard SPST wiring terminals allow for quick pressure switch replacement in the field.

Common Questions

What causes a pressure switch error on my Goodman furnace?
Errors are typically caused by a restricted flue vent, a failing inducer motor, moisture in the vacuum lines, or a mechanical failure within the switch itself. Always inspect for blockages in the barbs and hoses before replacing the component.

Can I use a higher WC pressure switch on a furnace designed for -0.9" WC?
No. Using a switch with a different setpoint can prevent the furnace from firing or allow it to operate under unsafe venting conditions. Always match the -0.90" WC specifications of the original 10207901.

How do I test the 10207901 with a multimeter?
With the inducer running, set your meter to continuity. The SPST switch should close, showing zero ohms. If the switch remains open while the inducer is at full speed, the part may be defective or the system is not reaching the required pressure.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
