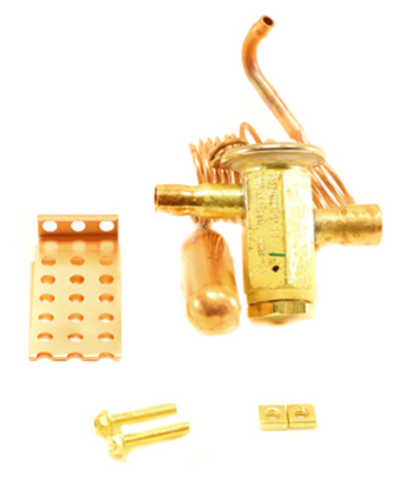

Armstrong Furnace R100254-11 Expansion Valve

The Armstrong Furnace R100254-11 Expansion Valve is a critical liquid-side metering device engineered for precise refrigerant flow control in high-efficiency residential systems. Designed specifically for compatibility with Allied Air and Armstrong Air evaporator coils, this thermal expansion valve (TXV) prioritizes maintaining consistent superheat across varying load conditions. It utilizes a balanced port design to mitigate pressure fluctuations, ensuring the HVAC expansion valve replacement restores system efficiency and prevents liquid slugging back to the compressor. The R100254-11 OEM part features a threaded connection for secure integration into the liquid line, facilitating accurate TXV troubleshooting and installation. By optimizing the refrigerant charge based on the internal evaporator temperature, this component maximizes heat transfer efficiency and protects the overall integrity of the cooling circuit. Technical professionals rely on this Armstrong furnace replacement part for its exact OEM tolerances and robust mechanical diaphragm life cycle in demanding environments.

Key Technical Benefits:

• Internal Equalization: Ensures precise response to evaporator pressure changes without external lines.
• Optimized Superheat Control: Maintains exact refrigerant flow control to maximize coil performance.
• Direct OEM Fit: Specific 100254-11 configuration eliminates field modifications during Armstrong HVAC repair.
• Enhanced System Reliability: Prevents compressor floodback by regulating liquid refrigerant entry effectively.

Common Questions:

What are the symptoms of a failing Armstrong R100254-11 expansion valve?
Technicians typically observe frosting on the evaporator coil, high suction pressure, or a hunting compressor cycle when the thermal expansion valve loses its charge or becomes restricted.

Is this TXV compatible with R-410A systems?
Yes, the R100254-11 is calibrated for high-pressure R-410A refrigerant applications commonly found in Armstrong and Concord split systems.

Can I use a universal TXV instead of the R100254-11?
Using the OEM expansion valve is recommended to ensure the orifice sizing and bulb charge match the specific tonnage requirements of the Allied Air evaporator coil.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
