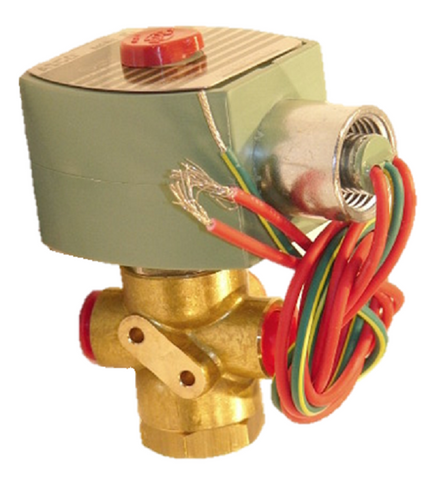

ASCO 8320G174 Valve

Valve, Solenoid, 3 Way Universal, 1/4", NPT, 120Vac, .12 Cv 0-100 PSI Air, Water, and Light Oil Direct Acting General Service Brass Body with NBR Seal and Nema 4X Enclosure

ASCO 8320G174 Solenoid Valve – 3-Way Universal, 1/4” NPT, 120VAC, Brass Body, NBR Seal, NEMA 4X

Upgrade your fluid control systems with the ASCO 8320G174 Solenoid Valve, a reliable 3-way, direct-acting solenoid valve designed for general service across air, water, inert gas, and light oil applications. Engineered for durability and performance, this compact valve features a 1/4” NPT port, 120VAC voltage, and a .12 Cv flow rate — perfect for demanding industrial environments.

Key Features:

• 3-Way Universal Function (3/2) – Versatile flow control with direct acting operation

• Brass Body Construction – Durable and corrosion-resistant for extended life

• NBR Seals – Ideal for air, water, and light oil media with excellent sealing performance

• NEMA 4X Enclosure – Rated for harsh environments, offering weatherproof protection

• No Minimum Pressure Required – Operates effectively from vacuum to 150 PSI

• Mounts in Any Position – Flexible installation for easier system integration

• High-Cycle Durability – Long-life model rated up to 20 million cycles with dry air or gas

• Certifications – UL, CSA, ATEX, IECEx listed for safety and compliance

Specifications:

• Valve Type: Solenoid – Direct Acting

• Port Size: 1/4” NPTF

• Media: Air, Water, Inert Gas, Light Oil

• Operating Pressure: 0 to 150 PSI (10.3 bar)

• Voltage: 120VAC (Available options: 24V DC/AC, 48V DC/AC, 115V AC, 230V AC)

• Flow Rate: 0.12 Cv

• Body Material: Brass

• Seal Material: NBR (Buna-N)

• Enclosure: NEMA 4X (Harsh Environment Rated)

The ASCO Series 8320G174 is part of the RedHat Next-Generation solenoid valve line, offering advanced voltage-ranging coils, energy-efficient performance, and fast-response actuation. Trusted across industries for its reliability and flexibility, this valve is ideal for OEMs, automation systems, and fluid power applications.

---
