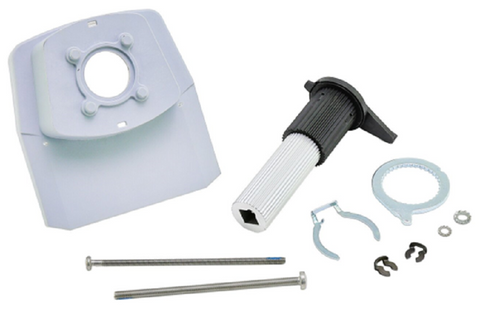

Belimo WAF-4 Valve Linkage

The Belimo WAF-4 Valve Linkage is a critical valve neck extension kit engineered specifically for technical field applications where distance between the actuator and valve body is required. As a genuine OEM Belimo accessory, this linkage ensures a high-torque, slip-free mechanical connection for Belimo AFB and NFB series actuators. Designed to integrate seamlessly with Characterized Control Valves (CCV) and Pressure Independent Characterized Control Valves (PICCV), the WAF-4 facilitates precise HVAC valve modulation and maintains stem alignment under high-demand hydronic conditions. Contractors utilizing this kit can resolve clearance issues in tight mechanical rooms without compromising the integrity of fail-safe actuator operations or control signal accuracy.

Technical Benefits for Contractors:

• Precision Alignment: Eliminates mechanical play between the damper actuator housing and the valve stem, preventing premature packing wear.
• Modular Compatibility: Purpose-built for AFB/NFB spring return actuators, ensuring the rated torque is fully transferred to the valve ball.
• Simplified Installation: The valve neck extension design allows for easier insulation wrapping and better access to manual overrides in hydronic control systems.
• Industrial Durability: Rugged construction stands up to the thermal cycling common in chilled water and hot water applications.

Common Technical Questions:

Which valve types are compatible with the WAF-4?
This linkage is specifically designed for Belimo B2 and B3 series CCV (Characterized Control Valves) and P2/P3 series PICCV. It is not intended for use with high-pressure globe valves or butterfly valves.

Does this kit require specialized tools for mounting?
No, the WAF-4 utilizes standard mounting hardware compatible with the Belimo AFB/NFB actuator platform, though verifying the valve stem diameter and neck height before field installation is recommended.

Can this extension be used for retrofit applications?
Yes, it is an ideal solution for HVAC retrofit projects where existing piping insulation or structural constraints prevent direct actuator mounting.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
