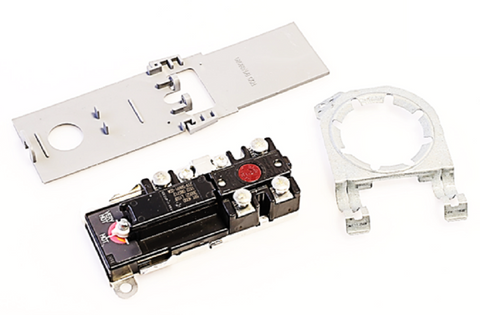

Bradford White 415-50691-00 Thermostat Assembly

As a field-proven Bradford White 415-50691-00 Thermostat Assembly, this genuine OEM component is the direct electric water heater thermostat replacement for single-element configurations. This assembly functions as a critical surface mount thermostat, providing high-accuracy temperature regulation for Bradford White RE Series models and similar residential electric units. It features a built-in TOD (Therm-O-Disc) style hi-limit switch (Manual Reset) to prevent tank overheating by breaking the circuit if temperatures exceed safe operating parameters. This specific control serves as an exact 415-50691-00 thermostat cross reference for legacy parts 265-40694-00 and 265-50691-00. Professional-grade construction ensure the bimetal sensors maintain tight differentials, preventing excessive cycling and reducing stress on the heating element. When diagnosing a water heater not heating or a tripped ECO (Energy Cut Off), this single element thermostat with hi-limit is the factory-authorized solution to restore system integrity and code compliance.

Key Benefits for Contractors:

• Exact OEM Match: Eliminates mounting issues and wiring discrepancies common with universal after-market controls.
• Integrated Safety: Features a manual reset high-limit safety switch to protect the pressure vessel from runaway heating.
• Broad Compatibility: Cross-references directly with 265-40694-00 and 265-50691-00 for legacy maintenance.
• Technical Precision: Bimetal sensor calibrated for Bradford White electric water heater parts specifications to ensure accurate set-point response.
• Durable Terminals: Robust screw terminal connections resist heat-related fatigue and ensure high-conductivity electrical paths.

Common Questions:

Can I use this on a dual-element water heater?
This is a single element thermostat designed for units with one heating element. Dual-element heaters typically require a non-simultaneous upper and lower thermostat configuration.

How do I reset the high-limit switch?
The red ECO reset button on the face of the assembly can be depressed if it has tripped due to an over-temperature condition. If it continues to trip, the element or thermostat likely requires replacement.

What models does this part fit?
It is engineered specifically for Bradford White residential electric series using a single element, including many RE1 and RE2 prefixes.
