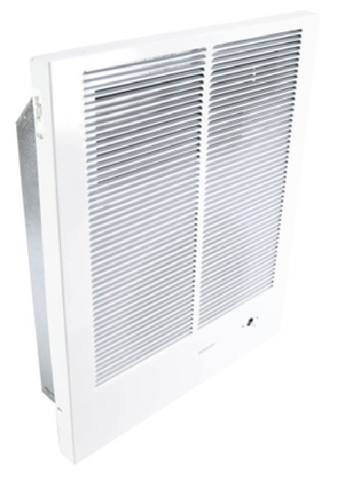

BROAN-NuTone 194 Wall Heater

The BROAN-NuTone 194 Wall Heater is a heavy-duty, high-capacity forced-air heating solution designed for architectural-grade installations. This recessed wall heater utilizes a factory-wired configuration for either 2000W at 240VAC or 1500W at 208VAC, delivering up to 6824 BTU/hr to handle large residential or commercial spaces. The unit features a downflow heater orientation with a centrifugal blower wheel, ensuring efficient heat distribution and quiet operation. Built with a heavy-duty eighteen-gauge steel front grille and a manual-reset thermal overload protector, the Broan 194 is engineered for high-traffic environments. It integrates an integral thermostat for precise localized control, though it can be easily converted for use with remote wall thermostats. This heater fits a standard 14-1/4" x 18" wall opening, making it a reliable drop-in replacement or new construction unit for vestibules, entryways, and large bathrooms requiring professional-grade electric wall heating.

Key Benefits

• Dual-Voltage Versatility: Field-adjustable for 208V or 240V circuits to match specific job site electrical requirements.
• High CFM Output: Features a high-efficiency centrifugal blower providing consistent airflow and rapid temperature recovery.
• Safety Integration: Equipped with a manual reset thermal overheat protector to prevent cycling after high-temperature trips.
• Durable Construction: The 18-gauge steel grille with white epoxy finish resists impact and maintains its aesthetic in demanding environments.
• Flexible Control: Includes a built-in front-mounted thermostat but supports secondary wiring for 24V or line-voltage wall controls.

Common Questions

What are the rough-in dimensions for the Broan 194?
The wall can requires a rough-in opening of 14-1/4 inches wide by 18 inches high by 3-7/8 inches deep for a flush-mounted finish.

Can this heater be mounted horizontally?
No, this unit is designed strictly for vertical wall mounting with the airflow directed downward; ceiling or horizontal installation is not permitted.

Is a back box included with the Broan-NuTone 194?
The 194 model is typically a complete assembly including the heater mechanism, grille, and thermostat; however, the Model 192 or 194 back box must be secured to the studs during the rough-in phase.
