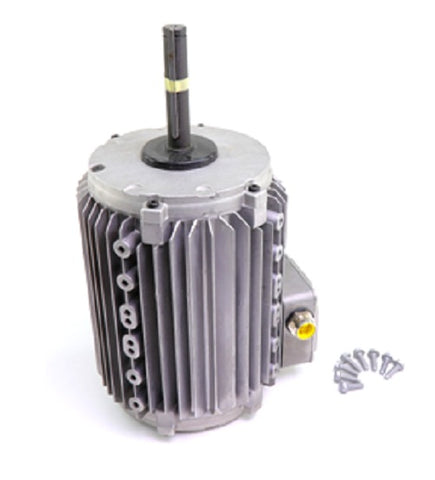

Carrier 30RA660002 Motor Kit

The Carrier 30RA660002 Motor Kit is a high-performance, original equipment manufacturer (OEM) solution designed specifically for heavy-duty industrial and commercial HVAC applications. This 400V 3-phase condenser fan motor delivers a robust 2 HP output and features a versatile dual-speed design, operating at 950/480 RPM. Engineered with a durable cast iron frame and reinforced end brackets, this motor is built to withstand demanding environments in chillers, air-cooled condensers, and large-scale refrigeration systems. As a direct replacement for HD56AZ460, it ensures a seamless drop-in fit, maintaining the precise mechanical alignment and electrical integrity of your Carrier equipment. The clockwise (CW) rotation and heavy-duty ball bearing system provide smooth, efficient operation, reducing mechanical vibration and optimizing airflow through the condenser coils for superior heat exchange performance. This genuine Carrier Factory Authorized Part is essential for technicians looking to restore factory-spec efficiency and reliability to their thermal management systems.

Key Benefits:

• OEM Compatibility: Engineered as the precise replacement for HD56AZ460, guaranteeing total integration with existing Carrier 30RA series units.
• Industrial Durability: Constructed with a rugged cast iron frame to provide maximum rigidity and structural stability under high-torque conditions.
• Dual-Speed Efficiency: Operates at both 950 RPM and 480 RPM, allowing for optimized energy consumption and precise cooling capacity control.
• Advanced Bearing Design: Equipped with a heavy-duty ball bearing system to minimize friction and extend the operational life of the motor shaft.
• Optimized Performance: Maintains the proprietary design specifications required to ensure your HVAC system meets its original efficiency ratings.

Common Questions:

Is the 30RA660002 a drop-in replacement for HD56AZ460?
Yes, this condenser fan motor kit is the manufacturer-designated direct replacement, ensuring all mounting points and electrical leads align with the original HD56AZ460 installation.

Can this motor be used in 230V applications?
No, this is a 400V 3Ph 2HP motor. To prevent electrical failure or equipment damage, it must only be installed in systems providing the specified 400V three-phase power supply.

What is the direction of rotation for this motor?
This motor is designed for Clockwise (CW) rotation. Technicians should verify fan blade pitch and airflow requirements before completing the replacement.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
