Carrier HC39AE209 Motor

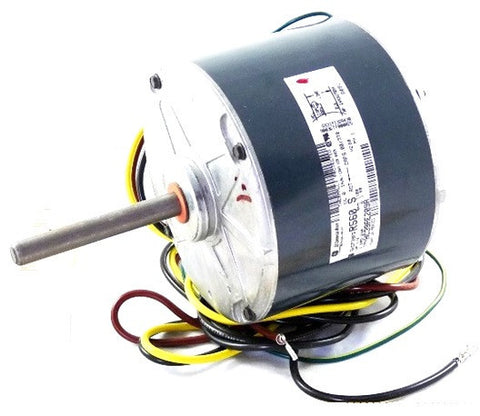

The Carrier HC39AE209 Motor is a high-performance direct drive condenser fan motor engineered specifically for technical residential and commercial HVAC service applications. Operating at 1100 RPM, this 1/4 HP replacement motor provides the precise torque and static pressure capabilities required for original Carrier, Bryant, and Payne outdoor units. Designed for efficiency on a 208/230V single-phase power supply at 60 Hz, this motor ensures consistent heat rejection and airflow across the condenser coils, preventing head pressure spikes and protecting the compressor from thermal overload.

For field installations, the HC39AE209 features a standard 48-frame diameter and a 1/2-inch shaft, allowing for seamless integration without modifications to the fan blade hub or mounting brackets. This OEM Carrier motor utilizes a permanent split capacitor (PSC) design, offering a reliable balance of starting torque and operational efficiency. Field technicians should verify the run capacitor requirements (typically 5 MFD/370V) during installation to ensure the motor operates within specified amperage limits and remains cooled by the airstream for maximum service life.

Key Benefits for HVAC Professionals

• Direct OEM Compatibility: Verified condenser fan motor specifications eliminate the need for universal mounting kits or shaft cutting in the field.
• Optimized Performance: The 1100 RPM speed profile is calibrated for factory CFM requirements, maintaining specific subcooling and superheat parameters.
• Rugged Construction: Built with high-grade insulation and ball bearings to withstand the high ambient temperatures found in outdoor condensing units.
• Standardized Electrical Specs: Operates on standard 208/230V circuits, making it the primary choice for HVAC motor replacement in the Carrier HC39AE209 series.

Common Technical Questions

What is the frame size and shaft diameter of the HC39AE209?
This motor utilizes a standard 48 frame with a 1/2" diameter shaft, ensuring it fits factory motor mounts and standard fan blades used in Carrier condensing units.

Does this motor require a specific capacitor?
Yes, as a PSC motor, it requires a run capacitor (sold separately). Always check the motor nameplate for the exact Microfarad (MFD) rating required to ensure proper electrical phase shift and rotation.

Can this be used as a replacement for 1075 RPM motors?
While 1100 RPM is often used interchangeably with 1075 RPM motors in the field, always verify that the amperage draw and shaft dimensions align with the original equipment manufacturer's data to prevent motor overheating.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
