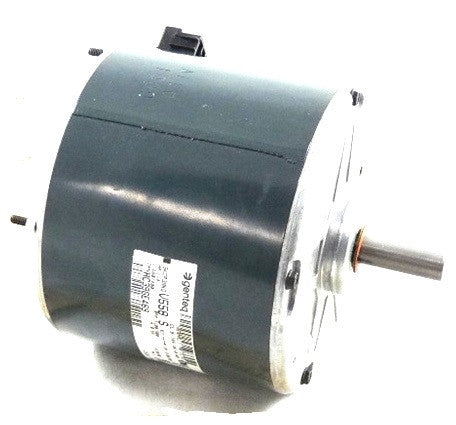

Carrier HC39GE469 Motor

The Carrier HC39GE469 Motor is a high-performance, 1/4 HP condenser fan motor engineered for demanding commercial and residential HVACR applications. Operating at 460V (compatible with 400V systems) and a rated speed of 1100 RPM, this motor is a direct OEM replacement for several Carrier, Bryant, and Payne units. Built with a 48Y frame (5.5-inch diameter) and a vertical shaft-down mounting profile, it ensures optimal airflow and heat dissipation for condenser coils. This single-phase permanent split capacitor (PSC) motor features a 1/2" x 1-7/8" shaft and clockwise (CW) rotation when viewed from the lead end, making it critical for maintaining system head pressure in high-voltage environments.

Key Benefits:

• Precision Airflow: The 1100 RPM output maintains the factory-specified CFM required for efficient refrigerant cooling.
• High-Voltage Compatibility: Specifically wound for 460V 60Hz systems, providing reliable torque under industrial power conditions.
• Durable Construction: Features Class B insulation and a continuous duty cycle to withstand high ambient temperatures in outdoor condenser sections.
• Direct OEM Fit: Eliminates the need for bracket modifications, fitting seamlessly into 48-frame motor mounts found in Carrier-family rooftops and split systems.

Common Questions:

What capacitor is required for the HC39GE469?
This motor requires a 10 MFD at 370VAC run capacitor. Replacing the capacitor during motor installation is recommended to ensure proper starting torque and prevent premature winding failure.

Can this motor be used in a 230V system?
No, this is a dedicated 460V motor. Attempting to run it on 230V will result in insufficient torque and motor stall, while using it on incorrect voltages will cause immediate damage to the internal windings.

What is the correct mounting orientation for this part?
The Carrier HC39GE469 is designed for vertical shaft-down mounting. Using it in a horizontal or shaft-up position may lead to bearing failure as the internal lubrication system is optimized for vertical operation.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
