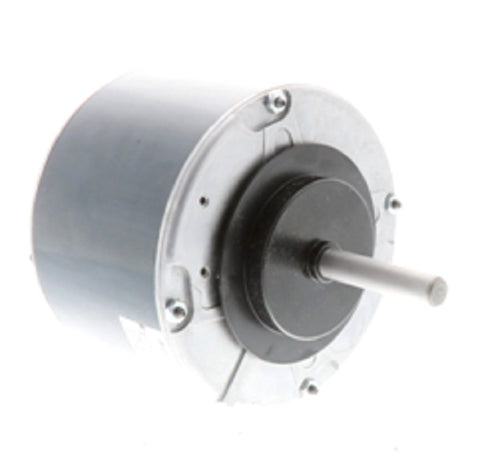

Carrier HC39SL711 Motor

The Carrier HC39SL711 is a high-performance OEM replacement motor designed specifically for condenser fan applications in Carrier, Bryant, and Payne residential and light commercial systems. Engineered as a 1/4 HP condenser fan motor, this unit operates at 208/230V and delivers a consistent 1075 RPM to ensure optimal heat rejection across the condenser coils. As a PSC motor (Permanent Split Capacitor), it utilizes a 5 MFD at 370 VAC capacitor to maintain high electrical efficiency and reliable startup under load. The CCW (Counter-Clockwise) rotation, as viewed from the lead end, is critical for maintaining the specific airflow patterns required by 48-frame HVAC chassis. Built with a NEMA 48 frame and sleeve bearings, this thermally protected motor is rated for continuous air-over duty, making it a rugged choice for demanding outdoor environments where dust and moisture protection are paramount.

• Direct OEM Compatibility: Engineered to provide a precise match for part numbers HC39SL710, HC37SL610, and HC39SL610, eliminating the need for mounting modifications.
• Optimal Thermal Management: Features an enclosed, non-ventilated (TENV) design with internal thermal protection to prevent overheating during high-ambient summer peaks.
• Efficient Performance: The single-speed, 1.90 Amp draw ensures low energy consumption while maintaining the necessary static pressure for heat exchange.
• Rugged Construction: Utilizing a 1/2-inch diameter flat shaft and heavy-duty end bells, it is built to withstand the vibration and torque of standard condenser fan blades.

What are the primary specifications for the Carrier HC39SL711?
This is a 1/4 HP, 1075 RPM, single-phase motor that operates on 208-230V at 60Hz. It features a CCW rotation and requires a 5 MFD/370V run capacitor for proper operation.

Can I use this motor to replace a 1075 RPM motor with CW rotation?
No. The HC39SL711 is fixed for Counter-Clockwise (CCW) rotation. Using a motor with the incorrect rotation will cause the fan to move air in the wrong direction, leading to high head pressure and potential compressor failure.

Does this motor include the capacitor?
No, the capacitor is sold separately. It is highly recommended to install a new 5 MFD @ 370V capacitor when replacing this motor to ensure the start windings function correctly and to prevent premature motor wear.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
