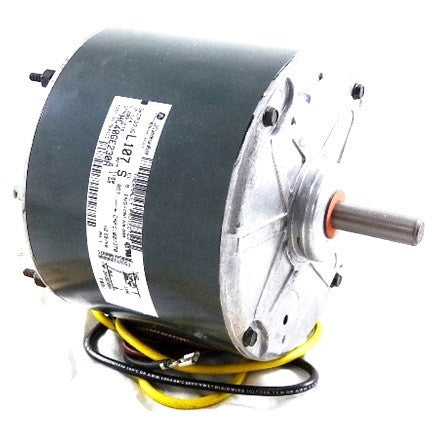

Carrier HC40GE230 Motor

The Carrier HC40GE230 is a heavy-duty PSC condenser fan motor engineered for high-static residential and light commercial HVAC applications. Operating at 208-230V, this 1/4 HP motor delivers a constant 1100 RPM, ensuring optimal heat transfer across the condenser coils. Built on a standard 48 frame diameter, it features an all-angle mounting design with a 1/2-inch shaft, providing direct-drive compatibility for a wide range of Carrier, Bryant, and Payne condensing units. This single-phase motor utilizes a permanent split capacitor for improved electrical efficiency and high starting torque in demanding outdoor environments. The motor includes high-grade Class B insulation and thermal overload protection to prevent winding failure during high-ambient cycles. When replacing an OEM HVAC motor, verify the microfarad rating on your existing capacitor to ensure professional-grade performance and equipment longevity.

• Broad Compatibility: Drop-in replacement for common Carlyle and Carrier fan motors requiring a 48-frame configuration.
• Environmental Durability: Totally Enclosed Air Over (TEAO) design protects internal components from debris and moisture.
• Optimized Airflow: Sustained 1100 RPM operation maintains critical subcooling and head pressure levels.
• Sleeve Bearing System: Designed for quiet operation and reliable service life in vertical or horizontal orientations.

What size capacitor does the HC40GE230 require?
This motor typically requires a 5 MFD / 370V run capacitor; always check the nameplate on the specific motor received to match the capacitance exactly.

Can this motor be used in clockwise and counter-clockwise applications?
The HC40GE230 is typically electrically reversible, allowing contractors to match the rotation of the existing fan blade during field installation.

Is this a direct replacement for an ECM motor?
No, this is a PSC induction motor. Verification of the wiring schematic is necessary if you are attempting to substitute an older constant-torque or variable-speed motor.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
