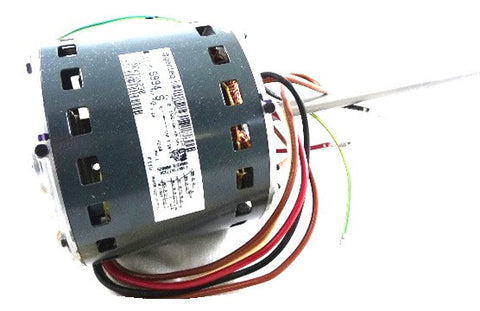

Carrier HC41VX230 Motor

The Carrier HC41VX230 is a heavy-duty, 1/3 HP 850 RPM motor designed specifically for demanding HVACR applications. This single-phase, 208-230V condenser fan motor features a NEMA 48 frame and is engineered for permanent split capacitor (PSC) operation, requiring a 7.5 MFD at 370 VAC capacitor for peak performance. Built to withstand high-static pressure environments, this OEM replacement motor utilizes a CCW rotation (counter-clockwise lead end) and a 1/2-inch diameter flat shaft to ensure a secure mechanical fit with fan blades found in Carrier, Bryant, and Payne equipment.

For service technicians in the field, the HC41VX230 offers a direct-drive solution that simplifies HVAC motor replacement tasks. It is thermally protected to prevent overheating during high ambient summer cycles, prolonging the operational life of the condenser unit. With a 1.60 Amp rating at 230V, this condenser fan motor provides the torque necessary for consistent airflow and efficient heat rejection. Always confirm the motor's physical dimensions and electrical nameplate data against the failed unit, as unbalanced fan blades can lead to vibration and premature bearing failure.

• OEM Compatibility: Specifically engineered for a precise fit in Carrier, Bryant, and Payne condensing units.
• High Torque Performance: Operates at 850 RPM to maintain optimal airflow across the condenser coils.
• Thermal Protection: Features internal automatic reset thermal overload protection to safeguard the windings.
• Standardized Mounting: Utilizes a NEMA 48 frame for standard bracket or through-bolt installation.
• Durable Shaft Design: 1/2" single side flat shaft prevents slippage and ensures reliable blade retention.

What capacitor is required for the HC41VX230?
This motor requires a 7.5 MFD / 370 VAC run capacitor to operate at the correct phase angle and output.

Is this a multi-speed motor?
No, this is a single-speed induction motor optimized for 850 RPM at 60Hz.

Can I use a larger horsepower motor to replace this?
It is recommended to match the 1/3 HP rating to ensure the fan blade pitch does not over-amp the motor or reduce system efficiency.
