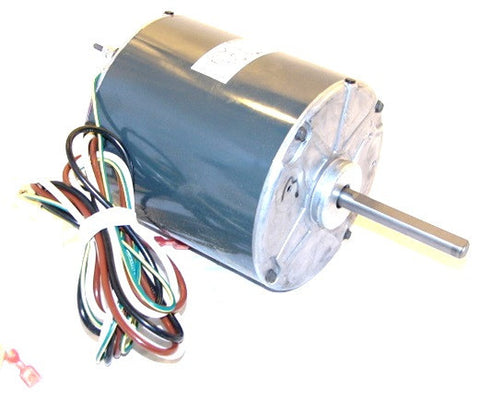

Carrier HC43GE460 Motor

The Carrier HC43GE460 is a high-performance OEM condenser fan motor engineered for reliable operation in demanding commercial and residential HVACR applications. Operating at 460V with a 1/3 HP output, this single-phase PSC (Permanent Split Capacitor) motor is designed for high-efficiency heat rejection. Running at a steady 860 RPM with a counter-clockwise (CCW) rotation, it serves as a precise drop-in replacement for numerous Carrier, Bryant, and Payne rooftop units and large-scale condensers.

This motor features a standard 48Y frame and is thermally protected to prevent winding failure under high ambient conditions. To ensure a professional installation and maximize the service life of the fan motor replacement, technicians should always pair this unit with a new 10 MFD at 370 VAC capacitor. The 1/2-inch x 2.8-inch shaft configuration provides a secure fit for existing fan blades, maintaining the original airflow specifications required for your 460V HVAC motor assembly.

• Genuine OEM Compatibility: Ensures seamless integration with Carrier HC42GL460 and Carrier HC43GE460A models without the need for mounting modifications.
• High-Voltage Performance: Optimized specifically for 460V 3-phase systems and equipment requiring a 1/3 HP load at 860 RPM.
• Durability in Extreme Environments: Features Class B insulation and a continuous air-over (CAO) duty rating to handle high-demand cycles.
• Easy Installation: Standard frame 48Y housing and a single-side flat shaft simplify lead connection and fan blade seating.

What is the standard rotation for this motor?
The HC43GE460 features a CCW rotation when viewed from the lead end (shaft up), critical for maintaining the correct airflow direction in specific Carrier condenser stacks.

Is this motor compatible with 115V or 230V systems?
No, this is a dedicated 460V condenser motor. Attempting to install this on lower voltage residential lines will result in immediate starting failure or electrical hazards.

Should the capacitor be replaced with the motor?
Yes. To avoid premature bearing wear or winding burnout, always replace the capacitor with a 10 MFD / 370V rated unit during service.
