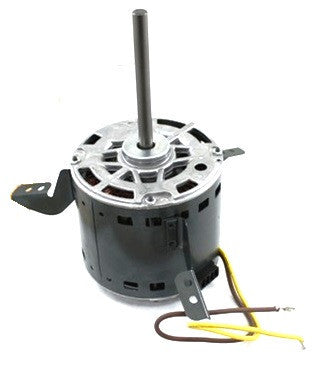

Carrier HC43ME241 Motor

The Carrier HC43ME241 is a high-performance 1/2 HP condenser fan motor designed for heavy-duty HVACR applications. Operating at 208-230V and a rated speed of 1075 RPM, this 48-frame motor provides the reliable torque and thermal stability required for consistent airflow in residential and commercial condensing units. As a three-phase HVAC motor, it offers superior electrical efficiency and smoother operation compared to single-phase alternatives, making it a preferred OEM replacement motor for technicians servicing Carrier, Bryant, and Payne equipment. The unit features clockwise (CW) rotation (viewed from the lead end) and robust internal components engineered to withstand high ambient temperatures and demanding duty cycles.

• Enhanced Efficiency: The 3-phase configuration reduces energy consumption and minimizes mechanical vibration during operation.
• Precise Specifications: Standardized NEMA 48 frame and 1075 RPM rating ensure direct compatibility with original fan blade pitch and shroud dimensions.
• Durable Construction: Built with high-grade windings to maintain performance in extreme outdoor environments.
• Direct Fitment: Engineered as a drop-in Carrier replacement motor to streamline field installation and reduce downtime.

• What is the rotation for the Carrier HC43ME241? This motor is designed for CW (Clockwise) rotation. Always verify the fan blade pitch matches this rotation before installation to ensure proper heat rejection.
• Can I use this motor to replace a single-phase unit? No, this is a three-phase motor. It requires a 3-phase power supply and cannot be used with a standard start/run capacitor setup found in single-phase systems.
• What are the physical dimensions of the shaft? The motor utilizes a standard 1/2-inch diameter shaft suitable for most HVAC blower and fan applications within the 48-frame class.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
