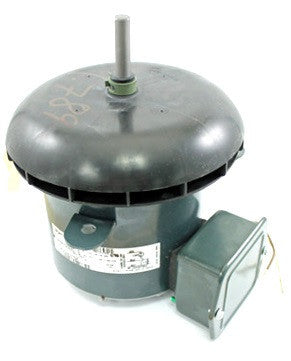

Carrier HC43VE575 Outdoor Motor

The Carrier HC43VE575 is a high-performance condenser fan motor engineered specifically for heavy-duty industrial and commercial HVAC applications. Operating at 575V with a 1/2 HP output, this motor maintains a consistent 1075 RPM to ensure optimal airflow across the outdoor coils. As a Factory Authorized Part, it serves as a direct OEM replacement for the HC43VL575 and identifies with the Genteq 5KCP39PGG985 manufacturing profile. This 48-frame motor features CCW (counter-clockwise) rotation and a standard 1/2-inch shaft diameter, allowing for seamless integration into Carrier, Bryant, and Payne condensing units. Built for durability in exterior environments, it utilizes sleeve bearings and a thermally protected OAO (Open Air Over) enclosure to prevent overheating during continuous operation.

• Direct OEM Compatibility: Ensures precision fit and factory-spec performance for Carrier replacement motors.
• High-Voltage Efficiency: Specialized 575V AC motor design tailored for specific three-phase industrial power systems.
• Robust Construction: Classified as a 1075 RPM fan motor with thermal protection to withstand demanding outdoor duty cycles.
• Verified Specifications: Matches Carrier HC43VE575 specs exactly, including the 2-1/2 inch shaft length and VSU mounting requirements.

Common Questions

What is the correct rotation for this motor?
The Carrier HC43VE575 is designed for counter-clockwise (CCW) rotation as viewed from the lead end. Always verify the fan blade pitch before installation to ensure proper airflow direction.

Does this motor require a specific capacitor?
Yes, to maintain torque and protect the windings, a 7.50 MFD @ 370 VAC run capacitor is required. Replacing the capacitor during motor installation is a best practice for system reliability.

Can this be used to replace other Carrier motor models?
This unit is a direct replacement for the HC43VL575. For other models, cross-reference the 575 volt motor specifications, frame size, and RPM to ensure electrical and mechanical compatibility.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
